Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

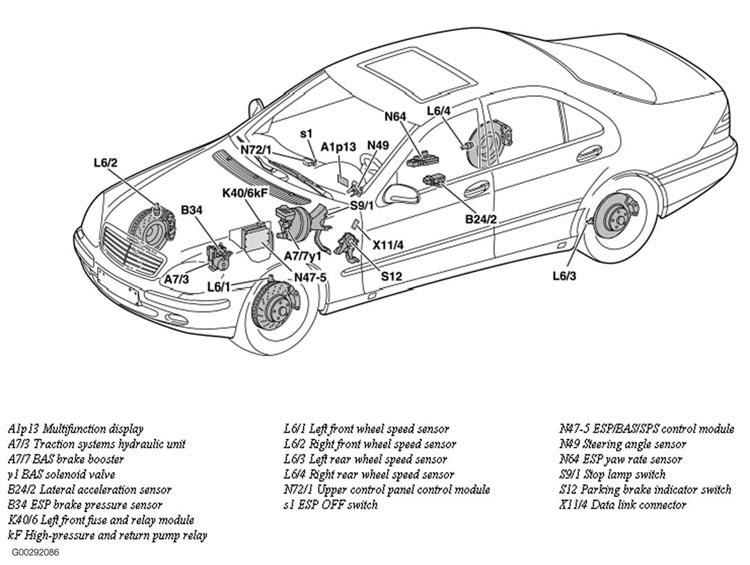

| Left Front Fuse/Relay Module | Left rear of engine compartment. See Figure. |

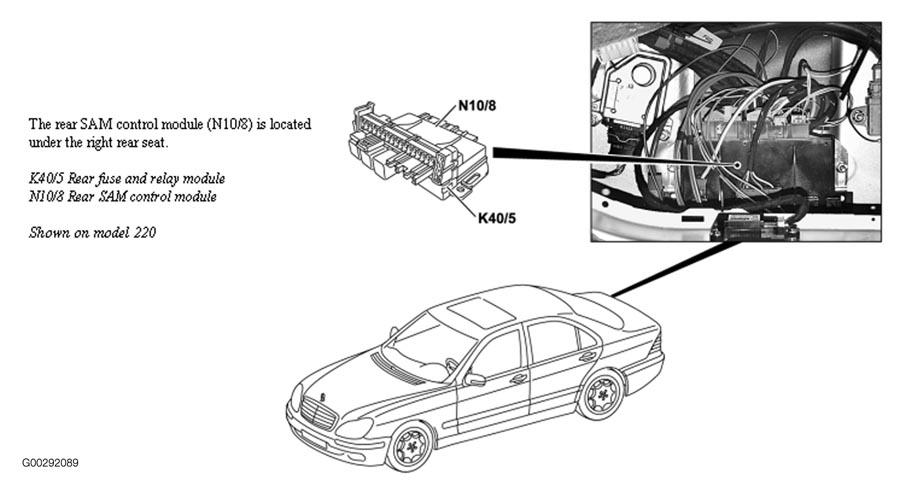

| Rear Fuse/Relay Module | Under right rear seat. See Figure. |

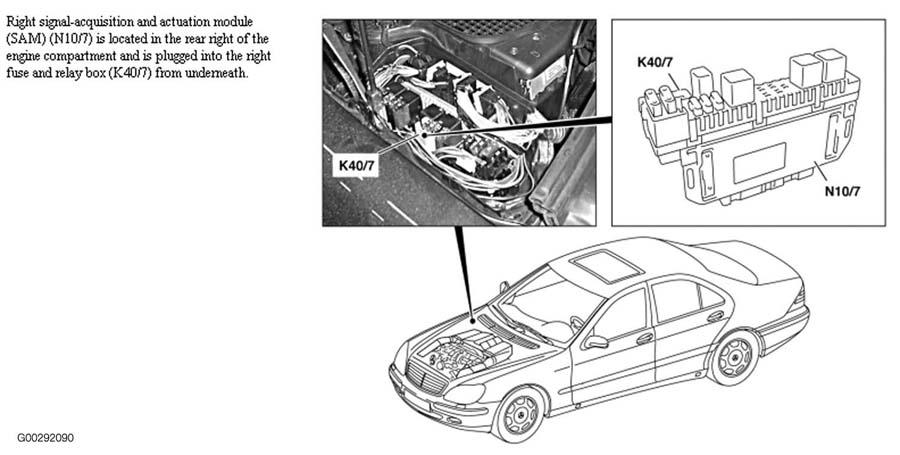

| Right Front Fuse/Relay Module | Right rear of engine compartment. See Figure. |

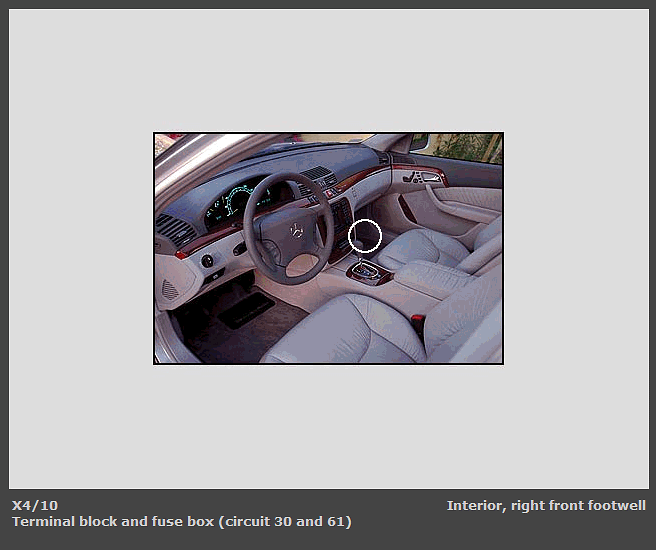

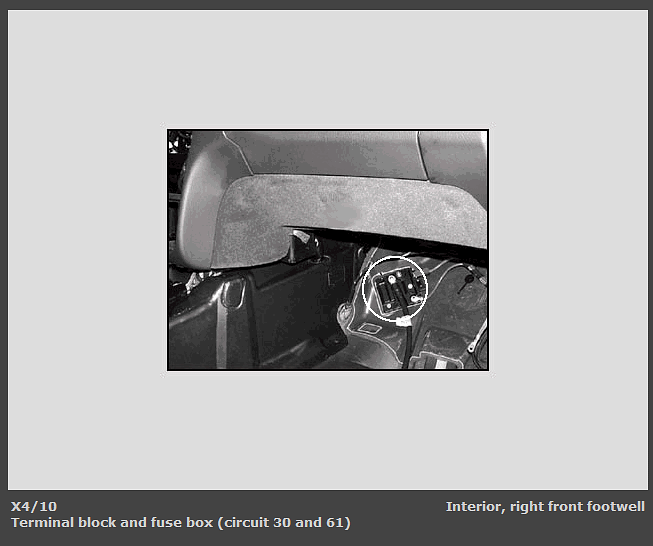

| Interior Right Front Footwell Terminal Block And Fuse Block | Right Front Footwell. See Figure and Figure . |
