Remove/install windshield - AR67.10-P-1000C: Notes

MODEL 129

	Remove
1	Prepare glue cartridge	Betagun 2K electric cartridge gun	AR67.10-P-1000-07P  *WH58.30-Z-1002-20A  *BR00.45-Z-1015-02A
2	Remove coupe roof or open soft top	See operating instructions
3	Remove window molding from side of windshield	The paneling above the windshield need not be removed. If necessary disconnect connector from rain sensor	ra68001290400x
4	Open hood and raise to vertical position
5	Mask fender in contact surface to paneling at front wall pillar with adhesive tape (arrow) and install protective fender cover
6	Remove wiper system and lay down in right engine compartment	Do not disconnect electrical connectors	AR82.30-P-6800B
7	Remove windows stops (2) at bottom left and right	Only vehicles as of middle of 1997
8	Remove paneling from front wall pillar		ra88001290850x
9	Press trim strip off of windshield at top with plastic wedge (arrows)		Fig 2
	Risk of injury  from slipping when clamping blade in the multicutter and from glass splinters when cutting out glued windows	Always interrupt air supply when inserting or removing blade. Wear protective gloves and eye protection.	AS67.00-Z-0001-01A
10	Remove windshield with cutting blade		AR67.10-P-1000-01C
			Figure
		Shorten blade at cutting blade by 10 mm, otherwise heat exchanger may be damaged	Figure
			*WH58.30-Z-1003-20A

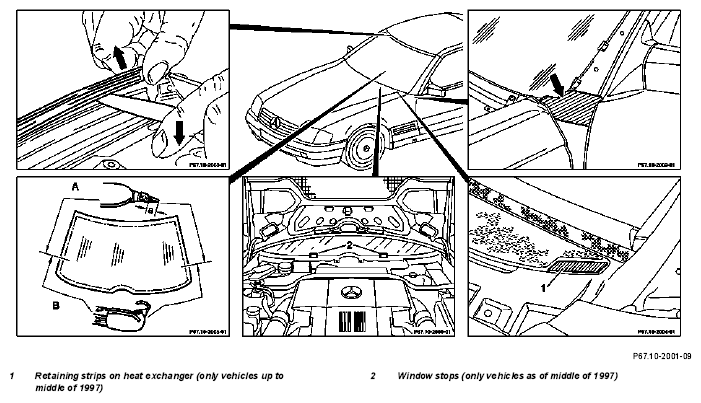

11	Remove windshield from body with suction cups	When removing window observe loosening of retaining strips (1) on heat exchanger (only vehicles up to middle of 1997)	*WE58.40-Z-1029-11A
	Install
12	Prepare body flange for installation of window		AR67.10-P-1501-01P  Figure
			Figure
			*WH58.30-Z-1003-20A
13.1	Install bottom window stops (2)	Only vehicles as of middle of 1997
13.2	Replace adhesive strips (1) on heat exchanger	Remove protective foil just before installing window Only vehicles up to middle of 1997
14	Prepare window for installation		AR67.10-P-1000-03P
15	Install window molding on side of windshield		ra68001290400x
16	Align windshield in body opening		AR67.10-P-1000-04C
			*WE58.40-Z-1029-11A
		Observe gap	*BE67.10-P-1001-01B
17	Apply glue		AR67.10-P-1000-08P
		Betagun 2K electric cartridge gun Height of glue bead approx. 13 mm Install window within 10 minutes before adhesive force of glue starts to decrease	*WH58.30-Z-1002-20A
18	Install windshield		AR67.10-P-1503-01C
		Curing time is approx. 1 hour, calculated from the time the windshield is installed.	*WE58.40-Z-1029-11A
19	Install trim strip at top of windshield (arrows)
20	Install paneling on front wall pillar		ra88001290850x
21	Install wiper system		AR82.30-P-6800B

Number	Designation			Model 129
BE67.10-P-1001-01B	Gap between window top edge and retaining rail	Dimension "A"	mm	5-7
		Fig. see		AR67.10-P-1000-04C

Number	Designation
WH58.30-Z-1002-20A	Electric cartridge gun
WH58.30-Z-1003-20A	Multicutter

WE58.40-Z-1029-11A

Cup suction tool for window removal and installation

Number	Designation	Order number
BR00.45-Z-1015-02A	Repair kit	A 220 670 00 93
