Float, location/function - GF27.10-P-5107N
TRANSMISSION 722.9 in MODEL 171.4,
TRANSMISSION 722.9 in MODEL 463.30

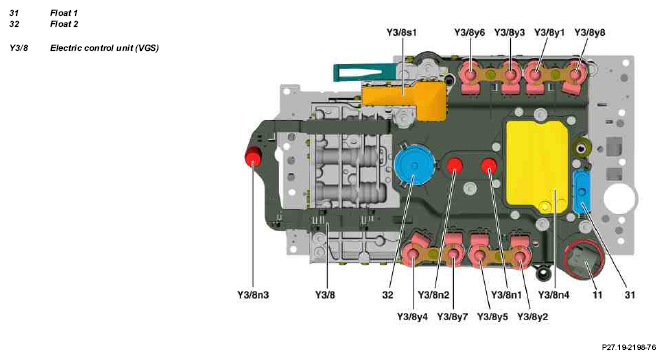

| Float, location | Float 1 (31) and float 2 (32) are accommodated in the electric control unit (VGS) (Y3/8). | ||
| Float, function | As the oil level rises, float 1 (31) and float 2 (32) seal the openings between the oil chamber and the gear set chamber. |
