Fuel pressure sensor - location/task/design/function - GF47.20-P-4007HA: Notes
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230
ENGINE 113.993 in MODEL 463
ENGINE 113.995 in MODEL 230
| Fuel pressure sensor - position | Model 215, 220 | GF47.20-P-4007-01M | |
| Model 230 | GF47.20-P-4007-01HA | ||
| Model 463 | GF47.20-P-4007-01GA | ||
| Fuel pressure sensor - task | The fuel pressure sensor detects the fuel system pressure. | ||

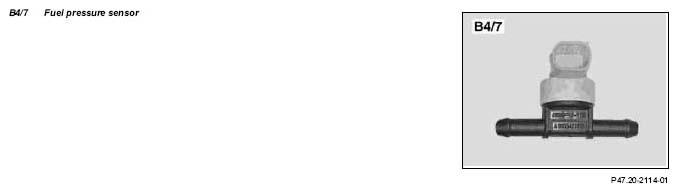

| Fuel pressure sensor - design | The fuel pressure sensor consists of a plastic housing in which a moveable diaphragm is located which acts on an electrical ohmmeter. | ||
| Fuel pressure sensor - function | The fuel pressure sensor detects the fuel system pressure and supplies a matching voltage signal to the fuel pump control unit (N118). |
