Control module for rear blower motor, location/task/design/function - GF83.10-P-2169P: Notes
WARNING: This page is about a different variant/trim than selected.
MODEL 203 as of 1.6.01,
209.3 /4 with CODE (581b) Convenience automatic air conditioning

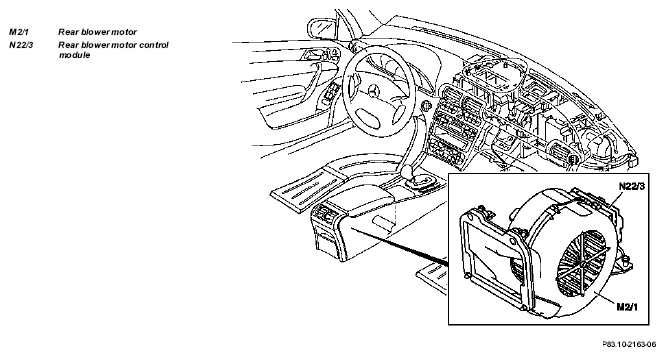

Shown on model 203
| Rear blower motor control module position | The rear blower motor control module (N22/3) is located behind the rear nozzle below the center console. | ||
| Rear blower motor control module task | The rear blower motor control module (N22/3) controls the rear blower motor (M2/1) voltage supply depending on the relevant blower level setting. | ||
| Blower motor control module, function | GF83.10-P-2169-01P |
