Coolant temperature sensor location/task/function - GF83.40-P-2184Q
WARNING: This page is about a different variant/trim than selected.
MODEL 209.3 /4

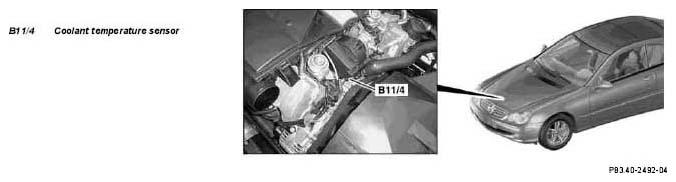

Shown on model 209.3 with engine 113
| Coolant temperature sensor position | The coolant temperature sensor (B11/4) is located at the front of the engine. | ||
| Coolant temperature sensor task | The coolant temperature sensor (B11/4) serves to record the coolant temperature. | ||
| Coolant temperature sensor function | An NTC resistor (negative temperature coefficient) is installed in the coolant temperature sensor (B14/11). As the temperature rises, resistance falls. |
