Sun sensor, location/task/function - GF83.57-P-2111P
WARNING: This page is about a different variant/trim than selected.
MODEL 203 up to 31.5.01 with CODE (581a) Air conditioning (Automatic)
MODEL 203 as of 1.6.01 with CODE (581b) comfort automatic air conditioning
MODELS 209.3 /4 with CODE (581b) comfort automatic air conditioning

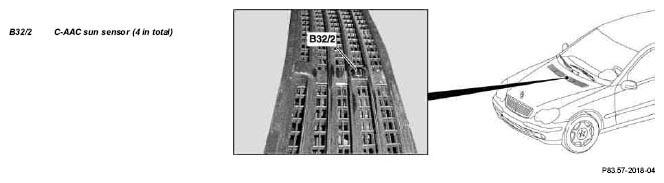

Shown on model 203
| Sun sensor, position | The C-AAC sun sensor (4 in total) (B32/2) is located at the engine hood center air inlet. | ||
| Sun sensor, task | The C-AAC sun sensor (4 in total) (B32/2) records the intensity and insulation direction. | ||
| Sun sensor, function | GF83.57-P-2104-01P |
