Electronic ignition switch control unit, location/task/design/function - GF80.57-P-4102PP: Notes
MODEL 203.0/ 2/ 7, 209

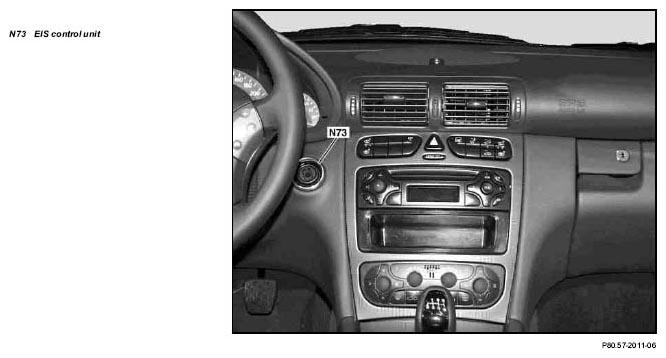

Shown on model 203.0 up to 23.4.04
| Electronic ignition switch control unit, location | The EIS control module (N73) is located on the right, next to the steering wheel below the instrument cluster (A1). | ||
| Electronic ignition switch control unit, purpose | Model 203.0/2/7 up to 23.4.04, Model 209 | GF80.57-P-4102-03PP | |
| Model 203.0/2/7 as of 24.4.04 | GF80.57-P-4102-03PQ | ||
| Electronic ignition switch control unit, design | The EIS control unit (N73) consists of the electromechanical ignition switch, a control unit and an infrared transmitter and receiver. | ||
| Electronic ignition switch control unit, function | The EIS control module (N73) operates with its own microprocessor reading in, checking and relaying data. |
