Inclination sensor, location/purpose/design/function - GF80.50-P-4105Q: Notes
MODEL 209.3 /4 up to 31.5.06 with CODE (551) Anti-theft alarm system (ATA [EDW])
MODEL 209.3 /4 as of 1.6.06 with CODE (551) Anti-theft alarm system (ATA [EDW]) except CODE (494) USA version except CODE (498) Japan version
Shown on model 209.3

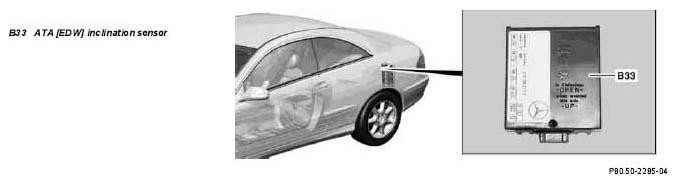

| ATA anti-towing sensor, location | The ATA inclination sensor (B33) is located in the trunk on the left wheelhouse | ||
| Inclination sensor, task | Monitors positional changes of the vehicle. | ||
| Inclination sensor, design | The ATA inclination sensor (B33) contains electrodes in an electrolyte (electrically conductive fluid). | ||
| ATA anti-towing sensor, function | GF80.50-P-4105-01Q |
