Diode Test

Connect engine tester with oscilloscope. See Fig 1. Start engine. Switch on low beam. Access diode test at 3000 RPM. See Fig 2-Fig 5 . Replace generator as necessary.

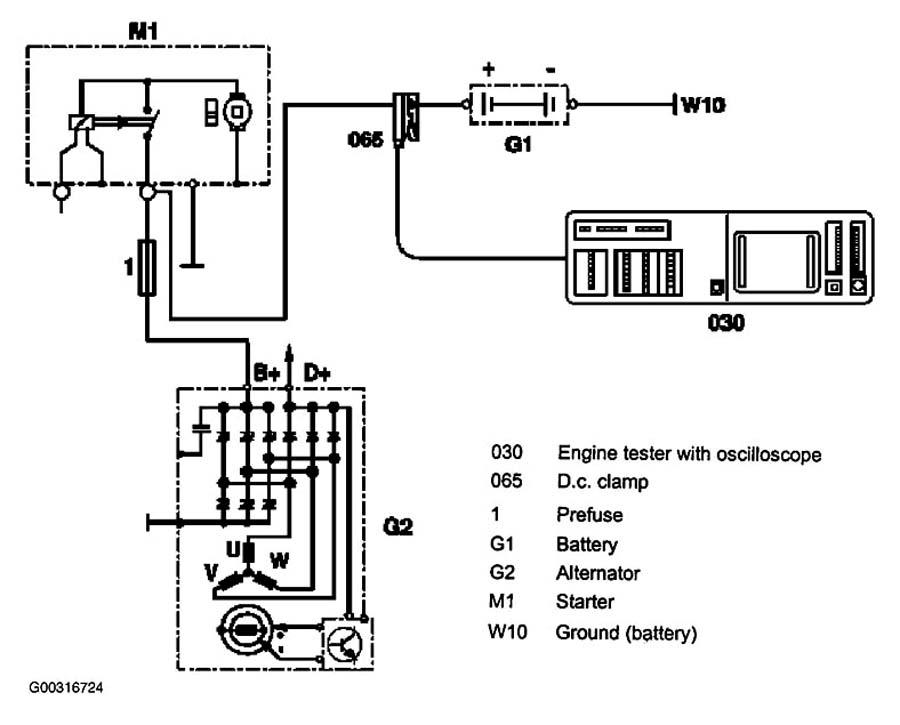

Fig 1: Identifying Engine Tester With Oscilloscope Connection

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 2: Identifying Oscilloscope Patterns (No Fault Indicated)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Oscilloscope Patterns (Pre-Fuse Defective)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Oscilloscope Patterns (Positive Diode Defective)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Oscilloscope Patterns (Negative Diode Defective)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
