CDI ignition ON, function - GF07.16-P-2000IC

ENGINE 647.961 in MODEL 211

ENGINE 648.960 in MODEL 220

ENGINE 648.961 in MODEL 211

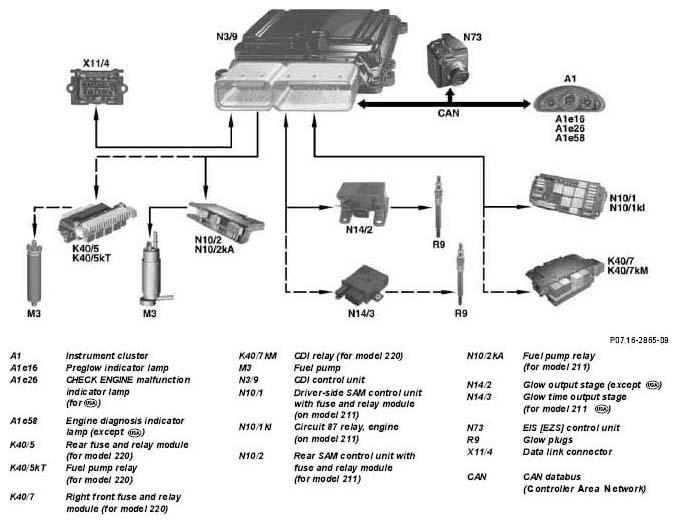

Fig 1: CDI Ignition ON Function Chart

Functions for "ignition ON":

• Engine control is achieved over the circuit 87 relay, engine (for model 211) or over the CDI relay (for model 220) by means of a voltage from "circuit 87"
• For fuel predelivery, the fuel pump is actuated for approx. 30 seconds (only for first "Ignition ON")
• To obtain a lamp check in the preglow indicator lamp and the engine diagnosis indicator lamp (or for model 211 the CHECK ENGINE indicator lamp) are actuated the instrument cluster for about 1 second
• Preglowing through actuation of glow plugs over the glow output stage (or for model 211 over the glow time output stage) a Data exchange via the CAN databus (circuit 50 signal).
• The fault memory can be read out and cleared via the data link connector.
• Corrective programming can be carried out using STAR DIAGNOSIS via the diagnosis data link connector

	CDI fuel supply, function		GF07.16-P-2006IJ
	European On-Board Diagnosis (EOBD), common rail diesel injection - function	On model 211 as of 01.03.2003 except On model 220 as of 01.09.2003 except	GF07.16-P-3200IC
	On-Board Diagnosis (OBD), common rail diesel injection - function	in case of model 211	GF07.16-P-3201IC
	Instant start function	in case of model 211	GF15.20-P-3002IC
	CDI preglow function	except	GF15.20-P-3004IC
	CAN data bus function	in case of model 211	GF54.00-P-0005IC
		in case of model 220	GF54.00-P-0005IJ
