Driver airbag, component description - GF91.60-P-4037T

MODELS 211.0/ 2

Location

The driver airbag and the associated squibs are installed below the steering wheel cover.

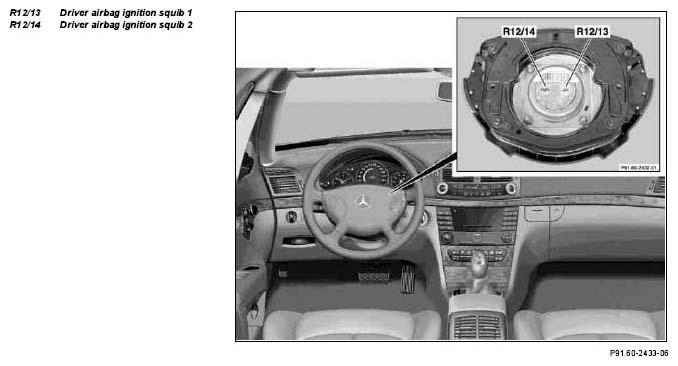

Fig 1: Identifying Driver Airbag Ignition Squib 1 And Squib 2

Task

If a head-on collision occurs, the driver is protected against injuries by the driver airbag. The driver airbag is designed in two stages and is started by the squibs, and thus its deployment can be controlled.
