Coolant temperature sensor, location/task/design/function - GF07.04-P-5026AM

ENGINE 113.990 /991 /993

ENGINE 113.992 /995 up to Model Year 8

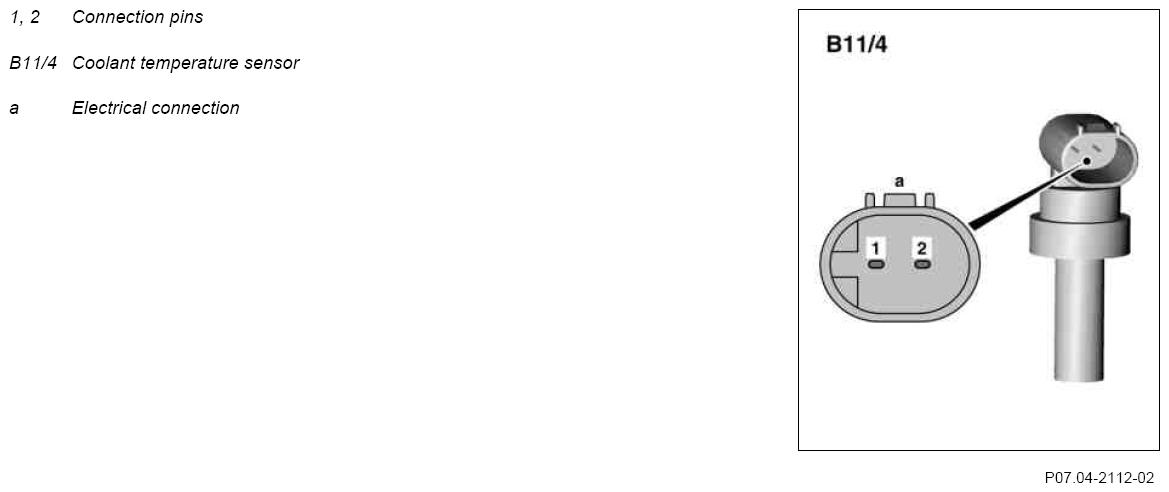

Fig 1: Identifying Coolant Temperature Sensor And Electrical Connections

Courtesy of MERCEDES-BENZ USA

	Coolant temperature sensor position		GF07.04-P-5026-02AM
	Coolant temperature sensor task	The coolant temperature sensor detects the coolant temperature and transmits a corresponding voltage signal to the motor electronics control unit (N3/10).
	Coolant temperature sensor, design	Metal housing with an integrated NTC resistance and a 2-pin plug connector. NTC = N  egative T  emperature C  oefficient
	Coolant temperature sensor function		GF07.04-P-5026-04AM
