Right Front SAM Control Module Connector End View (N10/7)

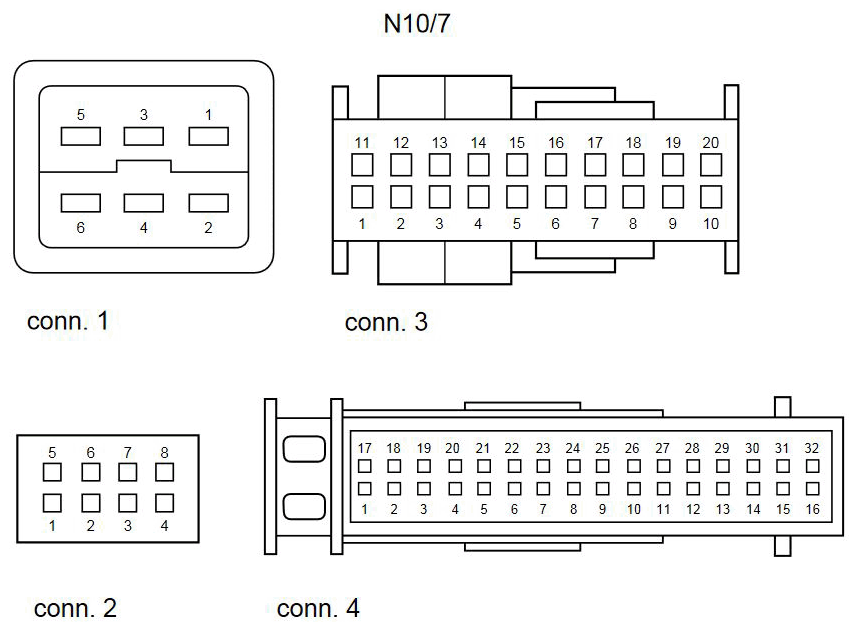

Fig 1: Right Front SAM Control Module Connector End View (N10/7)
G11074255Courtesy of MERCEDES-BENZ USA
