Keyless Go Control Module Connector End View (N69/5)

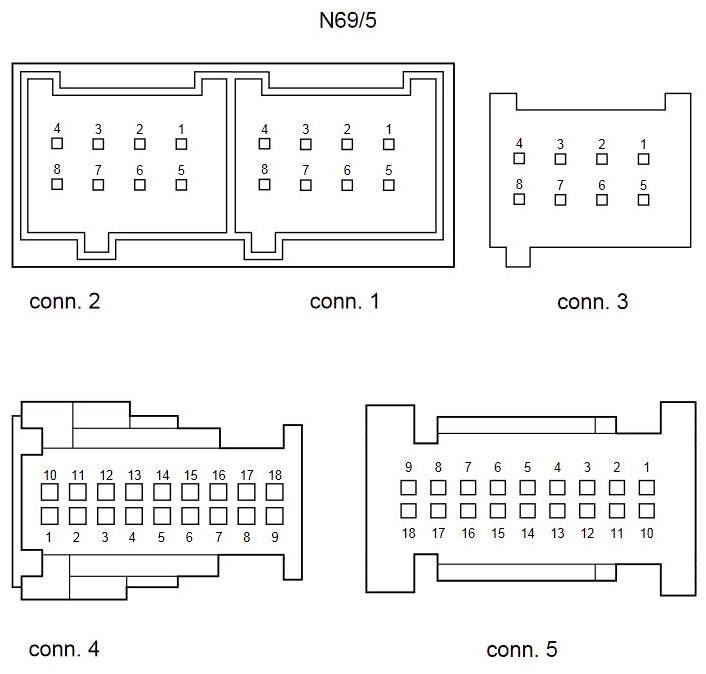

Fig 1: Keyless Go Control Module Connector End View (N69/5)
G11074975Courtesy of MERCEDES-BENZ USA
