Component description for spark plugs - GF15.10-P-2000V

ENGINE 272.920 in MODEL 203

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203, 209

ENGINE 272.941 in MODEL 203

ENGINE 272.942 in MODEL 171

ENGINE 272.943 in MODEL 211

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251

ENGINE 272.946 in MODEL 221

ENGINE 272.960 in MODEL 203, 209

ENGINE 272.963 in MODEL 171

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221

ENGINE 272.966 in MODEL 230

ENGINE 272.967 in MODEL 164, 251

ENGINE 272.970 in MODEL 203

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221

ENGINE 273.922 in MODEL 221

ENGINE 273.923 in MODEL 164

ENGINE 273.924 in MODEL 221

ENGINE 273.943 in MODEL 164

ENGINE 273.960 in MODEL 211, 219

ENGINE 273.961 in MODEL 216, 221

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251

ENGINE 273.965 in MODEL 230

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221

Location

In the cylinder head, each cylinder has a spark plug located in the center between the engine valves.

Task

The compressed fuel-air mixture is combusted by sparks between the electrodes according to the actuation from the ME control unit.

Design

In the manufacturer's specific type symbols, all the spark plug features are assigned (e. g. heat rating, shape of seating, thread, width across flats, electrode material, spark position).

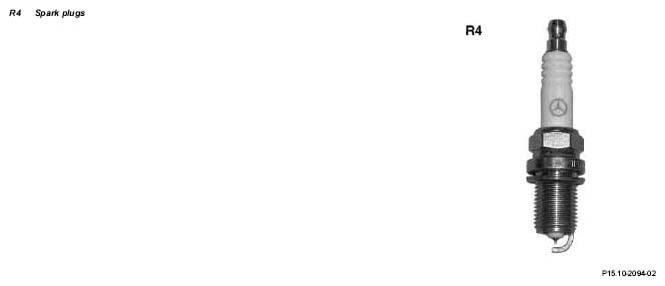

Fig 1: Identifying Spark Plugs - Engine 272.920/940/941

Courtesy of MERCEDES-BENZ USA

Function

The ignition voltage flows from the ignition lines of the directly plugged in ignition coils to the spark plugs and causes arcing in the air gap between the central electrode and ground electrode.

Spark plug table, see IS, Group 15.
