Check & Adjust Rear Toe Angle: Adjustments

1. Check riding height at front and rear and bring to specification if required. See RIDING HEIGHT (VEHICLE LEVEL)  .
2. Adjust toe with cam bolt (60a) on mounting of left and right tie-rod (60) on rear axle carrier (50). See Fig 1 .
3. Check overall toe-in at rear axle. See WHEEL ALIGNMENT SPECIFICATIONS  table.

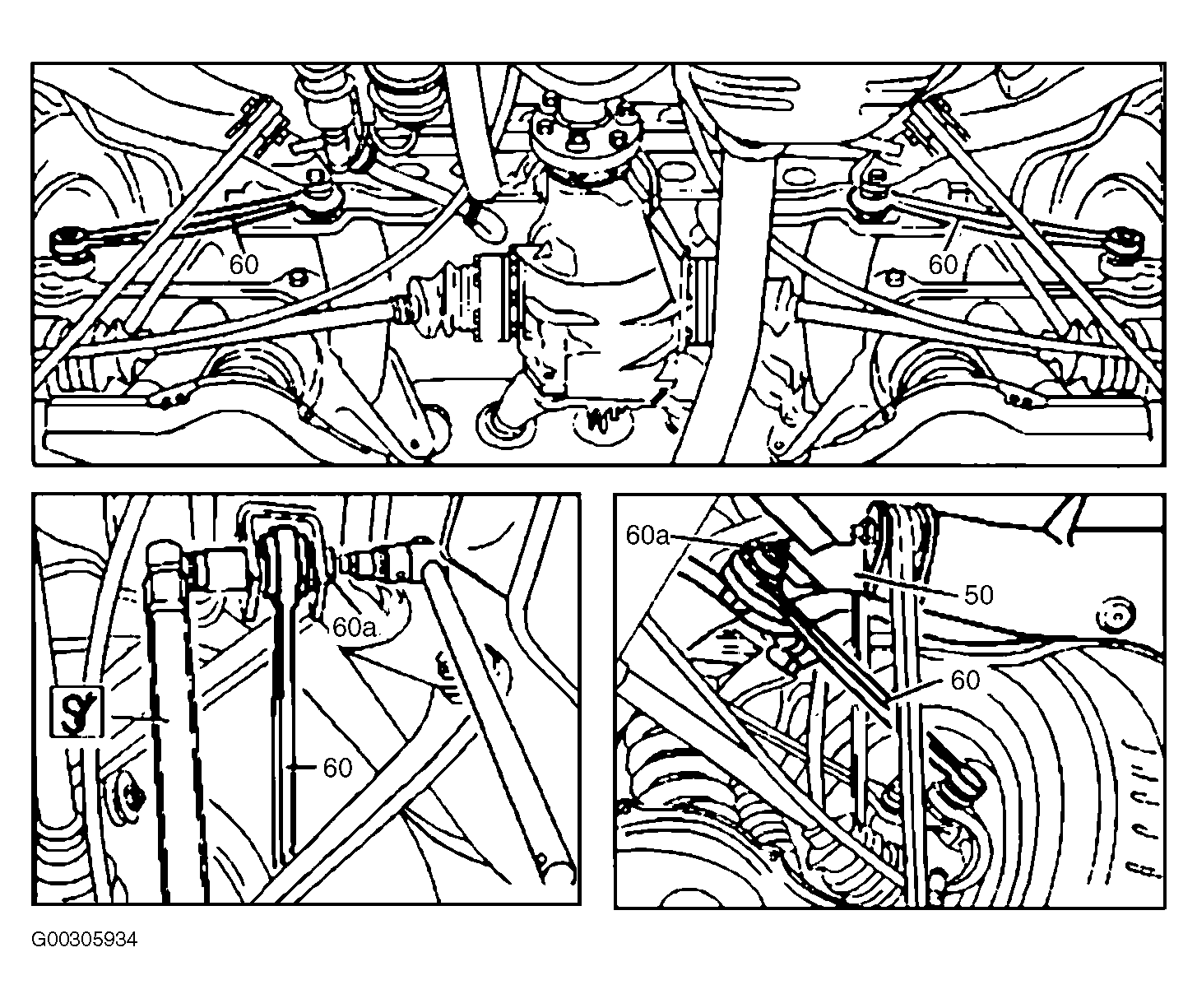

Fig 1: Adjusting Rear Axle Toe

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
