Holding pressure shift valve, location/task/function - GF27.60-P-5135G: Notes
TRANSMISSION 722.6

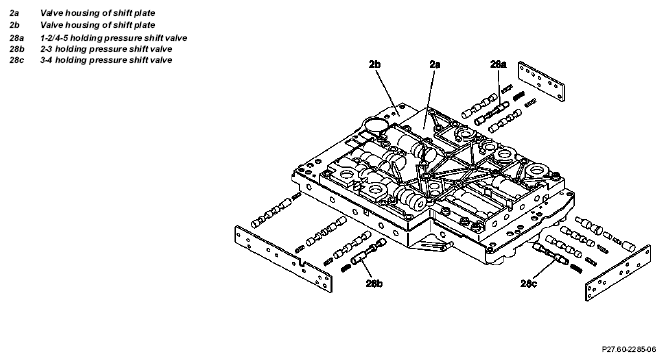

| Holding pressure shift valve, location | Each shift group is assigned a holding pressure shift valve (28a, 28b, 28c). The holding pressure shift valves 1-2/4-5 (28a) and 2-3 (28b) are installed in the valve housing (2b), the 3-4 holding pressure shift valve (28c) is installed in the valve housing of the shift plate (2a). |
||
| Holding pressure shift valve, task | Allocates the working pressure to one actuator of a shift group. | ||
| Holding pressure shift valve, function | GF27.60-P-5135-04G |
