Torque converter, location / task / design / function - GF27.20-P-5100G: Notes
TRANSMISSION 722.6
| Torque converter, location | The torque converter is rigidly bolted to the driver plate in the torque converter housing. | ||
| Torque converter, task | Reduces the power flow between the engine and the automatic transmission to a minimum when the vehicle is stationary and the engine is idling, boosts the engine torque and provides infinitely variable engine speed and torque matching when moving off. | ||

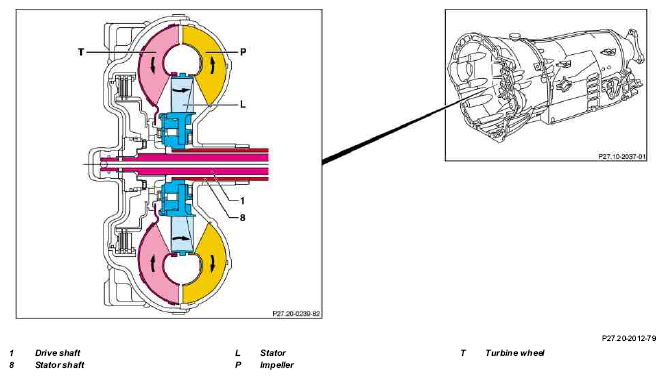

| Torque converter, design | The impeller (P) is connected to the engine, the turbine wheel (T) is connected to the transmission input shaft. The stator (L) is connected to the transmission housing via a freewheel and the stator shaft (8). |
||
| Torque converter, function | GF27.20-P-5100-02G |
