Upper Control Field Control Module Connector End View (N72/1)

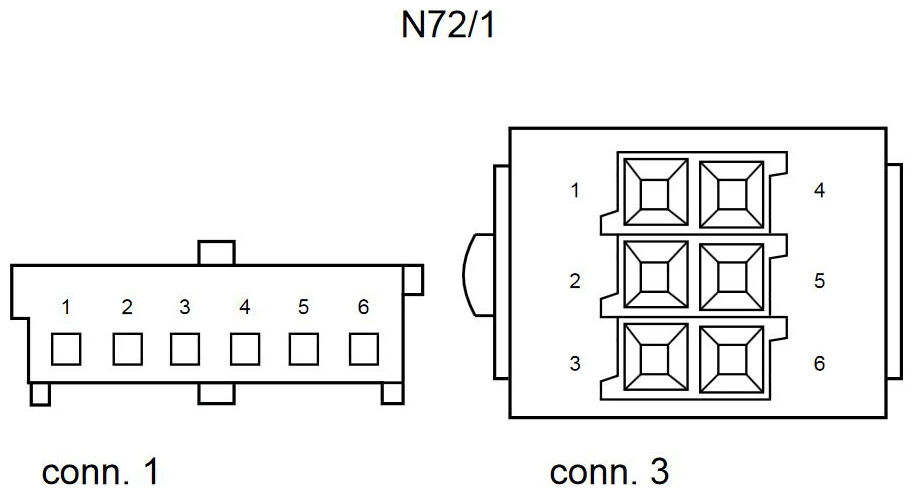

Fig 1: Upper Control Field Control Module Connector End View (N72/1)
G11073110Courtesy of MERCEDES-BENZ USA
