Torque converter lockup clutch, location/task/design/function - GF27.20-P-5101G: Notes
TRANSMISSION 722.6 in MODELS 129, 140, 163, 170, 202, 203, 208, 209, 210, 211, 219, 230, 240
TRANSMISSION 722.6 in MODEL 215, 220 except CODE (479) Cylinder shutoff
| Torque converter lockup clutch, location | The torque converter lockup clutch is integrated in the torque converter. | ||
| Torque converter lockup clutch, task | The torque converter lockup clutch minimizes the power losses of the torque converter and as a result reduces the engine speed and improves the efficiency of the transmission. | ||

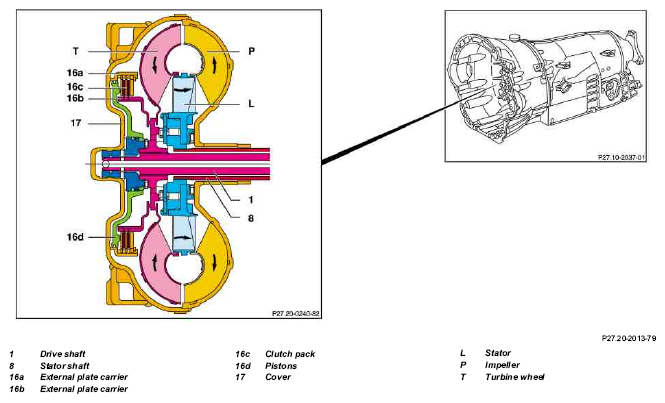

| Torque converter lockup clutch, design | The external plate carrier (16a) is connected to the impeller (P) via the cover shell (17). The internal plate carrier (16b) is connected to the turbine wheel (T). | ||
| Torque converter lockup clutch, function | Model 129, 140, 163, 170, 202, 203, 208, 210, 215, 220, 230 | GF27.20-P-5101-02G | |
| Model 209, 211, 219, 240 | GF27.20-P-5101-02T |
