Service Campaign 2005010003 - RECODING Of Tele Aid Control Module (2005010003)
Publication date: 2005-01-28Reference number: 2005010003
SERVICE CAMPAIGN 2005010003 - RECODING OF TELE AID CONTROL MODULE
SERVICE CAMPAIGN BULLETIN
Reference Number(s): 2005010003, Date of Issue:
January 28, 2005
| Mercedes-Benz: | Models 171/203/209/211/215/220/230 |
| GROUP: | 00 OF SERVICE INFORMATION BINDER |
| GROUP: | I OF INFORMATION PARTS & ACCESSORIES BINDER |
SUBJECT
MODELS 171/203/209/211/215/220/230
RECODING OF TELE AID CONTROL MODULE
SERVICE INFORMATION
This Service Campaign has been initiated because DCAG has determined that on the affected vehicles (see VIN range below), due to a software coding error, the Tele Aid system may become inoperable.

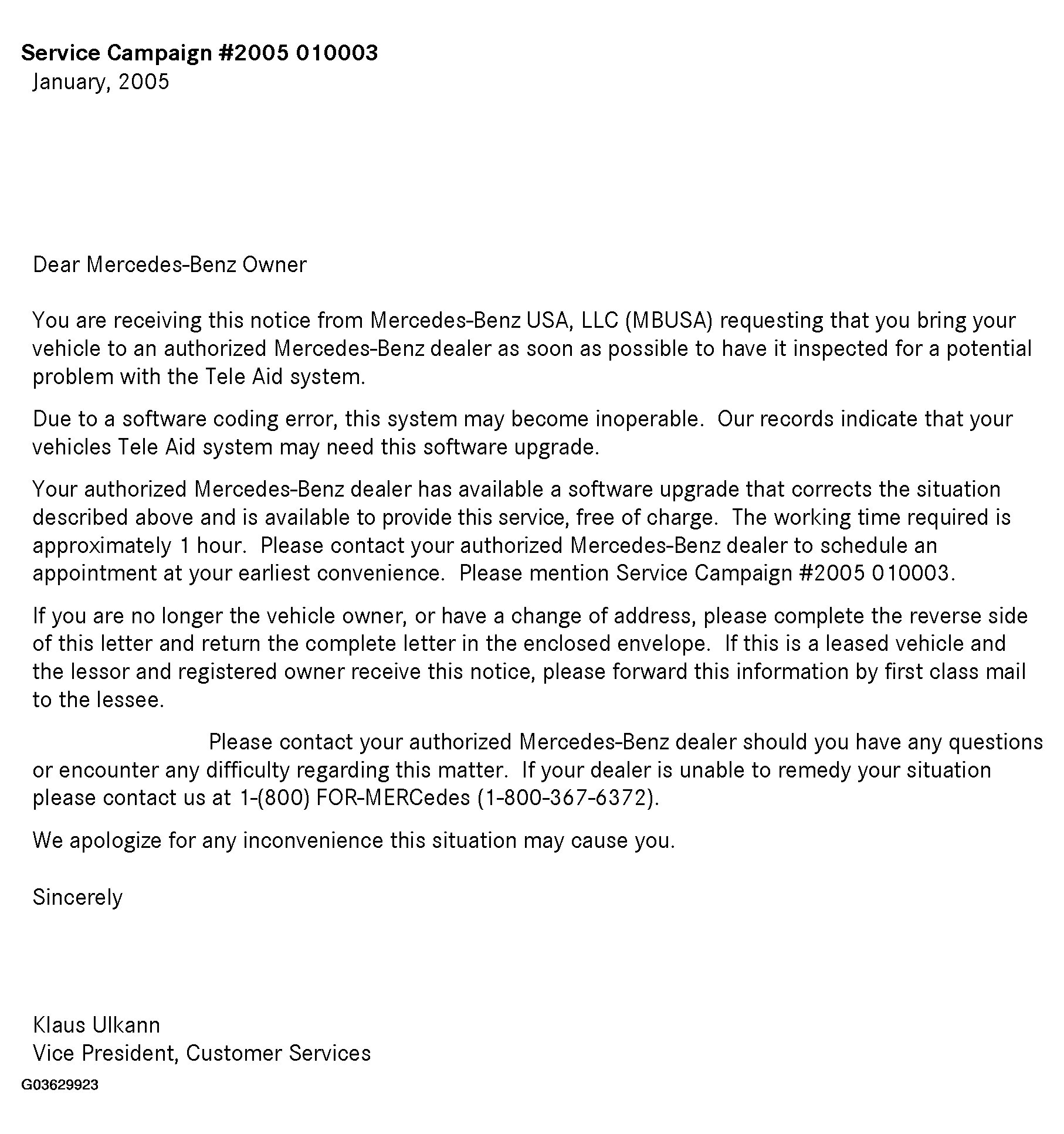

Attached is a sample copy of a letter which owners of the affected vehicles will receive.
Prior to performing this Service Campaign:
- Please check VMI to insure the vehicle is involved and to determine if the vehicle has been previously repaired.
- Please review the entire Service Campaign bulletin.
EFFECTIVE SERIAL NUMBER RANGE
EFFECTIVE SERIAL NUMBER RANGE
| Models | Chassis end number | |
|---|---|---|
| From | To | |
| 171 | F021558 | F023518 |
| 203 | A654321 | A699348 |
| 203 | F565972 | F603533 |
| 209 | F117214 | F132745 |
| 209 | T033555 | T038303 |
| 211 | A605426 | X650150 |
| 211 | X165630 | X169195 |
| 215 | A043588 | A044145 |
| 220 | A432180 | A443234 |
| 230 | F086350 | F090387 |
Approximately 1174 vehicles are affected.
PROCEDURE
NOTE:
Preflash requirements:
- Battery voltage >12.5 volts,
- Battery charger connected to vehicle's battery.
- Turn off all unnecessary electrical consumers (e.g.: A/C, lights, etc.)
- Connect SDS to vehicle through the 16 pin diagnostic connector (X11/4).
- Navigate through the following screen menus in DAS to recode Tele Aid control module:
Control units/Information and communication/Audio, video, navigation and Telematics/TELE AID/Control unit adaptations.
- Select Telematic services: Phone number.
- Set version coding to USA.
- Select "F5" to save coding.
- Select "F3-Yes / to transfer coding to control unit.
- Select "F2" to return to "TELE AID" menu.
- Perform SDS Quick test.
- Disconnect SDS.
NOTE:
The following allowable labor operation should be used when submitting a warranty claim for this repair:
WARRANTY INFORMATION
Operation: Tele Aid, Recode (02-4645)
WARRANTY INFORMATION
| Damage Code | Operation Number | Labor Time (hrs.) | Model Indicator(s) |
|---|---|---|---|
| 82 980 47 8 | 02-4645 | 0.5 hrs. | M1, M2, M6, M7, M8, M9, N1, N4, N5, N6, P1, P2, P6, P7, P9, Q1, Q3, Q5, R1, R2, R3, R4, S1, S2, S4, S5, S6, T1, T2, T3, T4, T5, T6, U1, U3, U4, X1 |
