Front SAM Control Unit With Fuse And Relay Module Connector End View (N10/1)

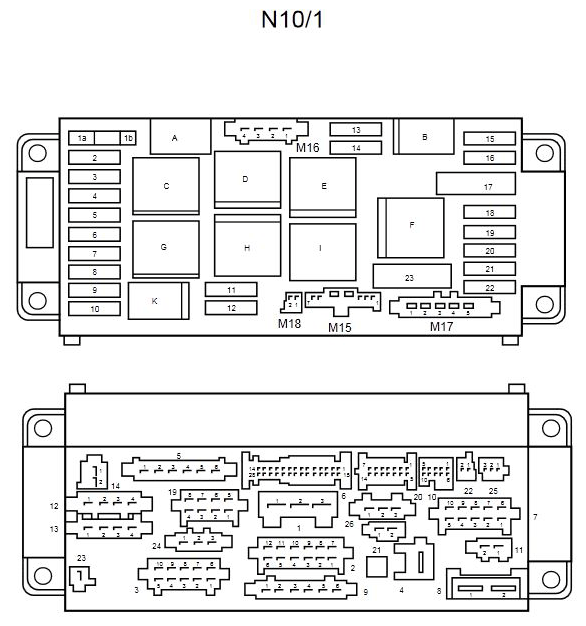

Fig 1: Front SAM Control Unit With Fuse And Relay Module Connector End View (N10/1)
G11070740Courtesy of MERCEDES-BENZ USA
