Multi-disk clutch, location/task/design - GF27.51-P-5103N: Notes
TRANSMISSION 722.9 in MODEL 171.4, 203, 209, 211, 215, 219, 220, 230
TRANSMISSION 722.9 in MODEL 463.303 /340 /341

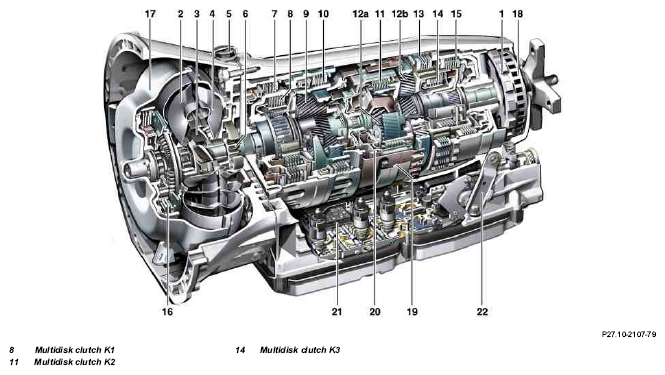

| Multi-disk clutch, location | 3 multi-disk clutches made up of multi-disk clutch K1 (8), multi-disk clutch K2 (11) and multi-disk clutch K3 (14) are arranged in planetary gear systems in the transmission housing. | ||
| Multi-disk clutch, task | To produce a friction connection between 2 elements of a planetary gear set or one element each from 2 planetary gear sets, for transferring the drive torque. | ||
| Multi-disk clutch, design | GF27.51-P-5103-03N |
