Routing Of O2 Sensor Harness (49.10/09)

Publication date: 2004-12-09
Reference number: 49.10/09

ROUTING OF O2 SENSOR HARNESS

TECHNICAL SERVICE BULLETIN

Reference Number(s): P-B-49.10/09, Date of Issue: December 9, 2004

MERCEDES-BENZ:	Model 171.456, up to chassis F042765
GROUP:	49 - Exhaust System

SUBJECT

Model 171.456, up to chassis F042765

Routing Of O2 Sensor Harness

SERVICE INFORMATION

NOTE: For Information Only!

It is NOT required to have the O2 sensor harness (see picture item 2) on the left and right side secured in the retaining clip (Fig 1 ,1). As of chassis # F042765 the retaining clips (Fig 1 , 1) on the left and right side will no longer be installed.

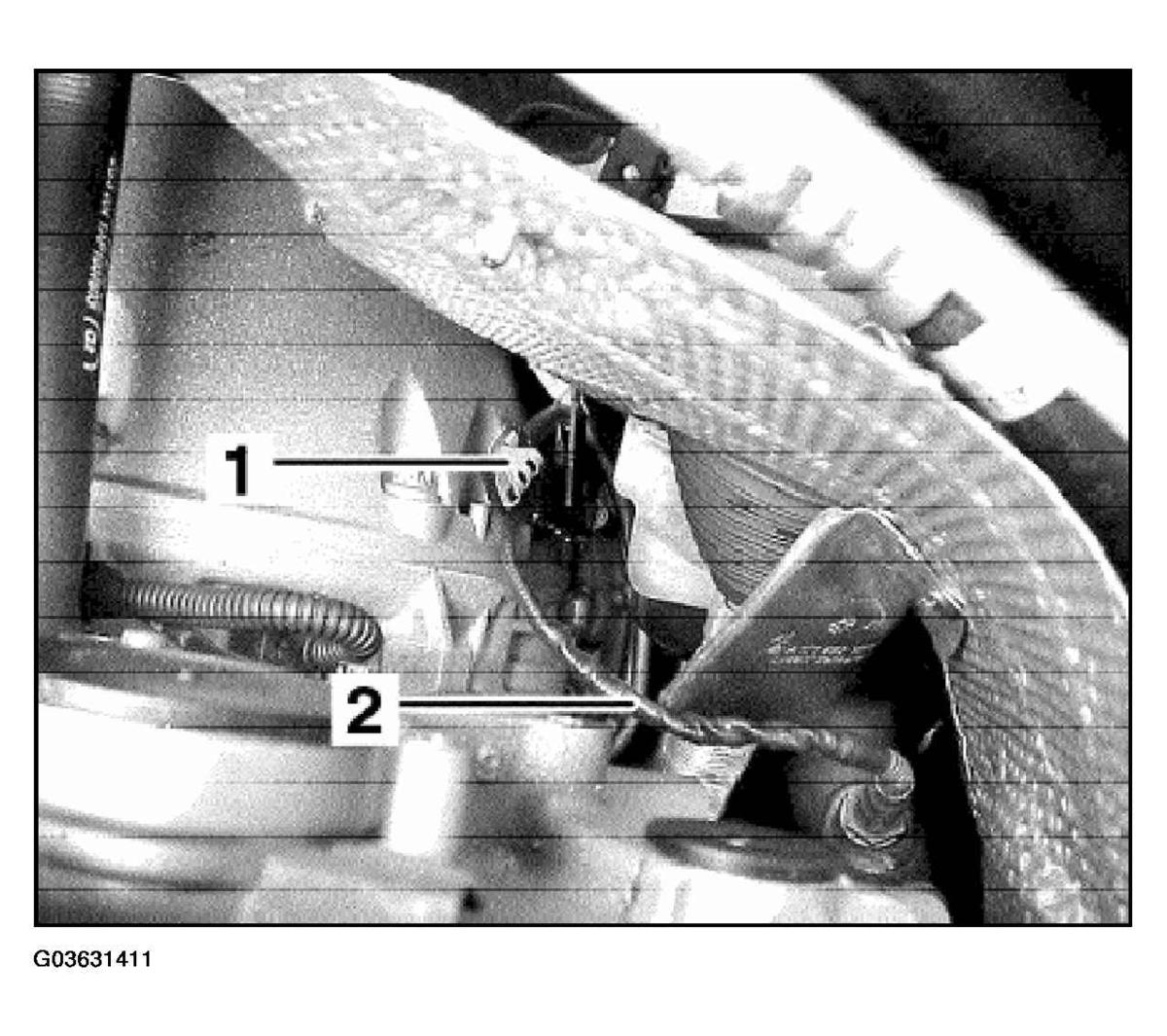

Fig 1: O2 Sensor Harness Routing
