ME-SFI fuel pump actuation, function - GF07.61-P-3012V
ENGINE 272.942 in MODEL 171
ENGINE 272.963 in MODEL 171
Shown on engine 272 in model171

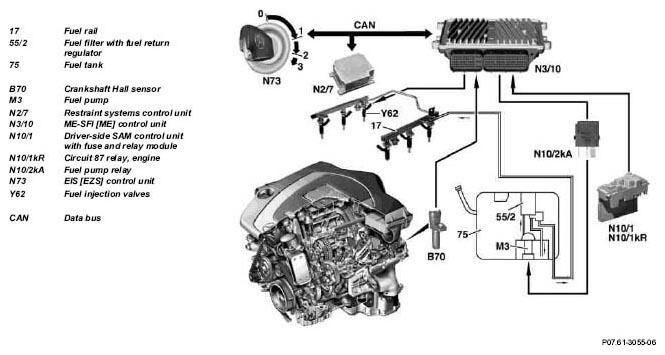

The fuel pump is actuated over the fuel pump relay by a ground signal from the ME-SFI [ME] control unit.
If the power contact of the relay is closed, the in-tank fuel pump control unit is connected via "terminal 87" with "terminal 30" (B+).
Terminal 30 is protected by a 20 A fuse.
If the fuel pump does not run, first check the voltage supply to the ME-SFI [ME] control unit, then the fuel pump fuse and the fuel pump line If the fuel pump does not run, first check the voltage supply to the ME-SFI [ME] control unit, then the fuel pump fuse and the fuel pump line terminals.
Fuel pump actuation has the following tasks:
- The fuel pump is actuated for complete filling for "ignition ON" for about 5 seconds. The engine must be started before the fuel pump is actuated again. In order to achieve short starting times, ensuring full fuel flow is required, in particular following long shutoff times.
- In order to start the engine the fuel pump is actuated for a recognized starter recognition (terminal 50 Signal).
- For a running engine the fuel pump is actuated by the recognized engine speed signal.
- For a running engine the fuel pump is actuated by the recognized engine speed signal.
- In the case of a detected front crash actuation of the fuel pump is interrupted.
| Component description for the fuel injection valves | GF07.03-P-6010V | |
| Component description for the crankshaft Hall sensor | GF07.04-P-6220V | |
| Component description for the fuel distribution rail | GF07.61-P-6020V | |
| Component description for the ME-SFI [ME] control unit | GF07.61-P-6000V | |
| Component description for the fuel tank | Model 171 | GF47.10-P-2000VA |
| Model 230 | GF47.10-P-2000VF | |
| Component description for the fuel pump | GF47.20-P-2000V | |
| Component description for the fuel filter with fuel pressure regulator | Model 171 | GF47.20-P-2110V |
| Model 203, 209 with engine 272.920/940/941 Model 230 |
GF47.20-P-2110VC | |
| Component description for the fuel pump relay | GF47.20-P-2010V |
