Fuel pump, component description - GF47.20-P-2000V

ENGINE 272.920 in MODEL 203

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203, 209

ENGINE 272.941 in MODEL 203

ENGINE 272.942 in MODEL 171

ENGINE 272.943 in MODEL 211

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251

ENGINE 272.946 in MODEL 221

ENGINE 272.960 in MODEL 203, 209

ENGINE 272.963 in MODEL 171

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221

ENGINE 272.966 in MODEL 230

ENGINE 272.967 in MODEL 164, 251

ENGINE 272.970 in MODEL 203

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221

ENGINE 273.922 in MODEL 221

ENGINE 273.923 in MODEL 164

ENGINE 273.924 in MODEL 221

ENGINE 273.943 in MODEL 164

ENGINE 273.960 in MODEL 211, 219

ENGINE 273.961 in MODEL 216, 221

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251

ENGINE 273.965 in MODEL 230

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221

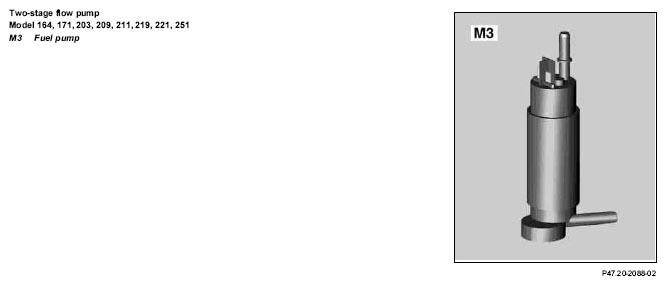

Fig 1: Identifying Fuel Pump - Two-Stage Flow Pump Model 164, 171, 203, 209, 211, 219, 221, 251

Location

The fuel pump is located in the fuel delivery module in the fuel tank.

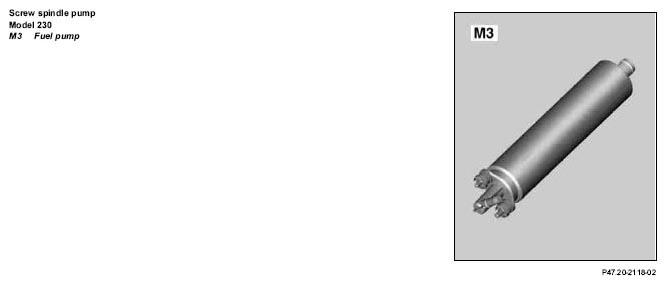

Fig 2: Identifying Fuel Pump - Two-Stage Flow Pump Model 230

Location

The fuel pump is located under the fuel tank at the vehicle underfloor.

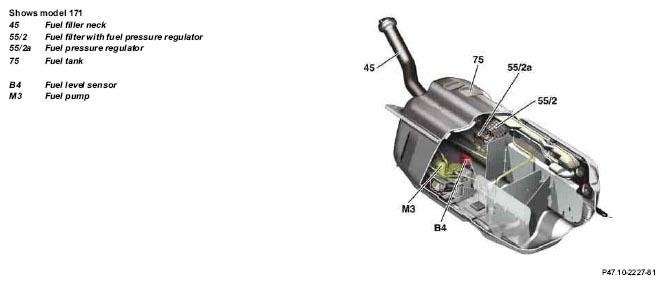

Fig 3: Identifying Fuel Pump - Screw Spindle Pump Model 171

Task

The fuel pump supplies an adequate quantity of fuel to the fuel system at the required pressure in all driving states.

Function

The fuel pump draws the fuel from the swirl pot and drives it to the fuel filter with the integral fuel pressure regulator. While cornering when the fuel level is low, the swirl pot prevents the fuel pump from drawing air.

The fuel pump is actuated via the fuel pump relay or the fuel pump control unit (engine 272.985).

The voltage supply is fuse protected.
