Knock sensors, location/task/design/function - GF15.12-P-4101AM
ENGINE 113.990 /991 /993
ENGINE 113.992 /995 up to Model Year 8

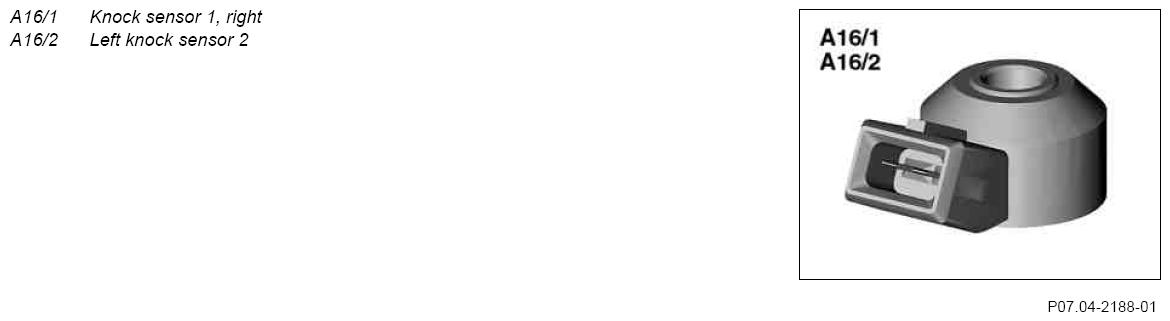

| Knock sensors, location | GF15.12-P-4101-01AM | ||
| Knock sensors, task | The knock sensors detect the vibrations at the crankcase of the respective cylinder bank. | ||
| Knock sensors, design | The knock sensors are all in one a closed system. Inside the sensor are piezo crystals. The screened 2-pin connection lines are directly put onto the knock sensors. | ||
| Knock sensors, function | GF15.12-P-4101-02AM |
