Self-adjustment of mixture formation, function - GF07.61-P-3030AMG

ENGINE 156.980 in MODEL 164, 251

ENGINE 156.982 in MODEL 209

ENGINE 156.983 in MODEL 211, 219

ENGINE 156.984 in MODEL 216, 221

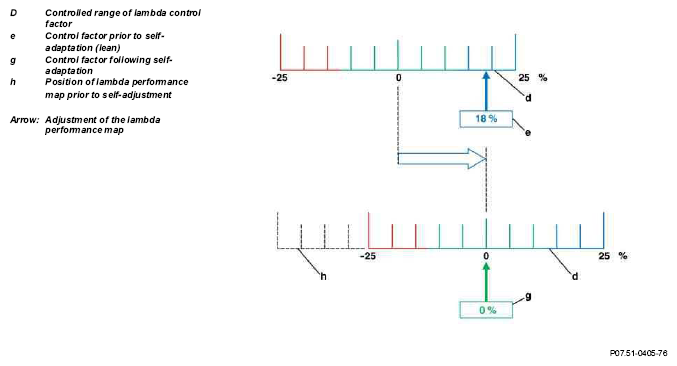

Fig 1: Mixture Formation Self-Adjustment Graph
G04958381Courtesy of MERCEDES-BENZ USA

On vehicles fitted with a closed-loop controlled catalytic converter the lambda control determines the injection time so exactly that a certain fuel-air ratio (λ) is maintained in all operating states. The ME-SFI [ME] control unit (N3/10) automatically corrects the mixture formation if one of the following faults occurs:

In this case, the lambda map is shifted within certain limits so that the lambda control is not positioned at the lower or upper control stop.

If the mixture composition constantly drifts out of the middle control range (e.g. 0 ±10 %), the ME unit under certain operating conditions shifts the lambda map sufficiently far until a lambda control factor of approx. 0% (g) is again achieved.

Self-adjustment ensures that the mixture composition in the control mode (e.g. warming-up phase) is neither too rich nor too lean. This also prevents the lambda control from moving up to the control limit at high altitudes.

Example:

As a result of a lean fuel/air mixture, the readout of the lambda control factor changes to 18 % (e). Under certain operating conditions the lambda performance map is shifted (arrow) by the ME-SFI [ME] control unit.

This shifting of the lambda performance map is the self-adjustment of the mixture formation process to the existing air/fuel mixture. After this self-adjustment the lambda control factor is again in the central control range (g).

Self-adjustment of the mixture formation can be carried out in the following operating states:

The following can be read out with STAR DIAGNOSIS:

Representation of self-adaptation values with STAR DIAGNOSIS:

The representation is performed in "ms" and means that the displayed value for determining the injection time is either added to or subtracted from the injection time determined by the performance map.

Example:

Calculated injection time (performance map): 3.0 ms

Value displayed in STAR DIAGNOSIS: +0.3 (ms)

For determining the injection time (fuel injection quantity) the ME-SFI [ME] control unit uses a calculated value of 3.3 ms (3.0 ms+0.3 ms).

Idle correction value

The maximum correction value is ±1.0 ms.

Partial load correction value

The maximum correction value is -0.68 to +1.32 ms.

  Component description for the ME-SFI [ME] control unit N3/10 GF07.61-P-6000AMG
  Component description for O2 sensors G3/3, G3/4 O2 sensors upstream of TWC GF07.04-P-6100AMG
G3/5, G3/6 O2 sensors downstream of TWC GF07.04-P-6100AMH
