Window airbag, location/task/design/function - GF91.60-P-4014PP
MODEL 203 Illustrated on Model 203.0

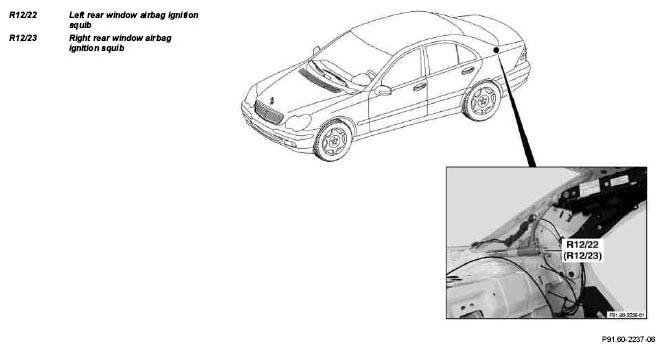

| Window Airbag - Location | The gas generators with the left rear window airbag squib (R12/22) and the right rear window airbag squib (R12/23) are located in the left and right C-pillars. The air hose is located in the lateral side of the roof frame folded up. | ||
| Model 203.2 | GF91.60-P-4014-01PP | ||
| MODEL 203.7 | GF91.60-P-4014-01PC | ||
| Window Airbag - Task | GF91.60-P-4014-02A | ||
| Window Airbag - Design | GF91.60-P-4014-03A | ||
| Window Airbag - Function | GF91.60-P-4014-04A |
