Rear SAM Control Module With Fuse And Relay Module Connector End View (N10/2)

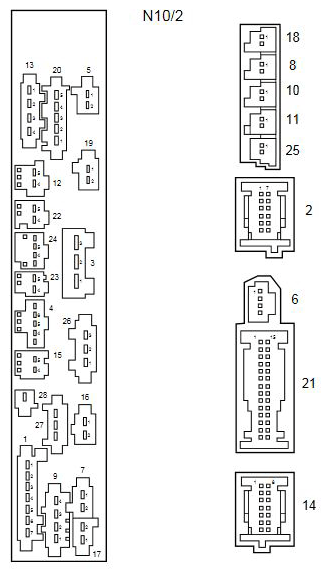

Fig 1: Rear SAM Control Module With Fuse And Relay Module Connector End View (N10/2)
G11067768Courtesy of MERCEDES-BENZ USA
