Correction programming, function - GF07.61-P-3031SM

ENGINE 113.986

ENGINE 113.987

ENGINE 113.988

ENGINE 113.989

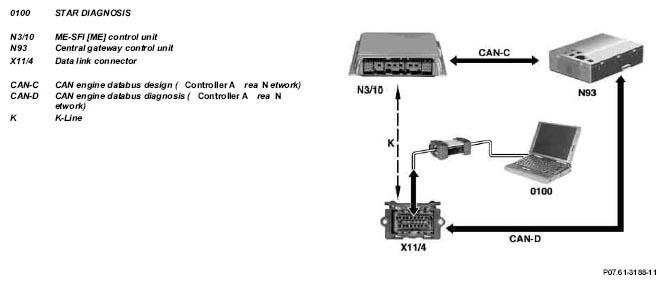

Fig 1: Correction Programming Function (Engine 113)

Different performance maps for the engine control can be stored or activated with the correction programming in the ME control unit (N3/10).

The corrective programming can be carried out with STAR Diagnosis (0100) when ignition is "ON", via the data link connector (X11/4).

The following maps can be influenced:

Ignition maps for adapting to different fuel quality (except )
Mixture maps for enriching the air/fuel mixture in different operating states (except )
Idle speed with transmission mode selected
Fault setting conditions for rendering smooth engine running (recognition less sensitive)

ME-SFI [ME] control unit component description

N3/10
