ME-SFI two-sensor control, function - GF07.61-P-3020KE

ENGINE 271.921 in MODEL 203

ENGINE 271.940 in MODEL 203, 209

ENGINE 271.941 in MODEL 211

ENGINE 271.944 in MODEL 171

ENGINE 271.946 in MODEL 203

ENGINE 271.948 in MODEL 203

ENGINE 271.955 in MODEL 209

ENGINE 271.956 in MODEL 211

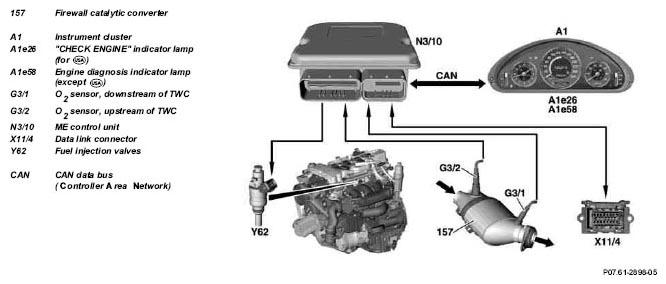

The ME engine control unit determines the lambda mean value from O₂ sensor signal downstream of TWC. This value is compared with a stored value for optimum exhaust emissions.

If the deviation is too large after a number of measurements, a correction variable (delay time) is determined for the lambda control.

The correction variable (value for new O₂ sensor upstream TWC approx. 0) makes it possible to compensate for aging of the O₂ sensor upstream of TWC within certain limits. If the correction variable exceeds the stated limit value, the O₂ sensor upstream of the TWC must be replaced.

The correction values are performance map dependent and are implemented by the ME control unit by adapting the fuel injection. if the limit value is exceeded or if the plausibility check of the O₂ sensor signals (upstream and downstream of the catalytic converter) is failed the engine diagnosis indicator lamp or for the CHECK ENGINE indicator lamp lights up in the instrument cluster.

Exceeding a limit value is stored in the fault memory and can be read out and deleted using STAR DIAGNOSIS.

The effect of the firewall catalytic converter is monitored with the O₂ sensor signal downstream of TWC.

	Component description for fuel injection valves	Y62		GF07.03-P-6010KE
	Component description for O2 sensors	G3/1, G3/2		GF07.04-P-6100KE
	Component description for the ME-SFI [ME] control unit	N3/10		GF07.61-P-6000KE
	Component description for the exhaust system			GF49.00-P-3010KE
	Component description for three-way catalytic converter	157, 158		GF49.10-P-2010KE
	Component description for the engine diagnosis indicator lamp	A1e58	Except code 494 USA version	GF54.30-P-5010KE
	Component description for the "CHECK ENGINE" indicator lamp	A1e26	With code 494 USA version	GF54.30-P-5011KE
