Driver's Airbag, location/task/design/function - GF91.60-P-4001PP
MODELS 203.0/ 2/ 7
Illustrated on Models 203.0, 203.2

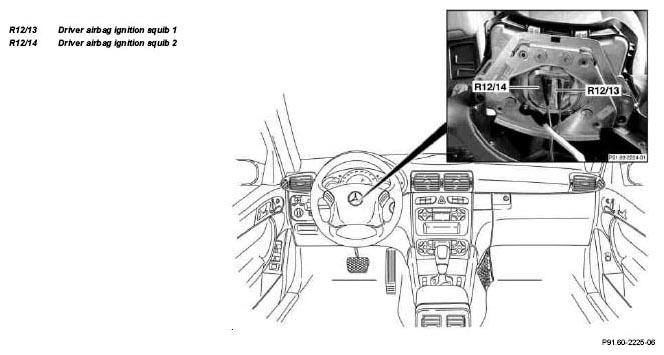

| Driver airbag, location | The driver airbag is integrated in the steering wheel's impact absorber together with the driver airbag squib 1 (R12/13) and driver airbag squib 2 (R12/14). It can be seen after the impact absorber has been removed. | ||
| Driver Airbag - Task | The driver airbag protects the driver from injuries in the event of a head-on collision. When a frontal crash occurs, the airbag inflates within approximately 45 msec to fill the space between the steering wheel and the driver and thus cushion and stop the forward movement of the driver's body. | ||
| Driver airbag, design | GF91.60-P-4001-03PP | ||
| Driver Airbag - Function | GF91.60-P-4001-02PP |
