Front heated seat switch, location/task - GF91.30-P-3000PQ

MODELS 203.0 /2 /7 as of 4/23/04 with CODE (873) Electrically heated left and right front seats

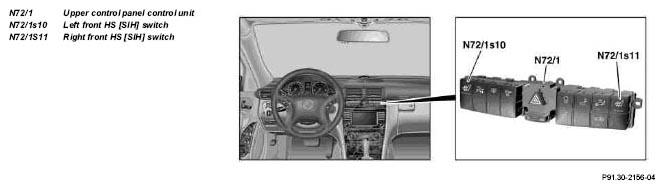

Fig 1: Identifying Front Heated Seat Switch, Location - Models 203.0 /2 /7 As Of 4/23/04 With Code (873)

	Front heated seat switch, location	The left front heated seat switch (N72/1s10) and right front heated seat switch (N72/1s11) are integrated into the upper control panel (UCP) control unit (N72/1).
	Front heated seat switch task	Switching heated seats (HS) on, off or changing the setting. The heating level for the heated seats (HS) is indicated by LEDs in the left front heated seat switch (N72/1s10) and/or in the right front heated seat switch (N72/1s11).
