Rear sidebags, location/task/design/function - GF91.60-P-4015PP
MODELS 203.0 /2 /7 with CODE (293) Left and right rear sidebags except CODE (494a) USA version
MODELS 203.0 /2 /7 with CODE (494a) USA version

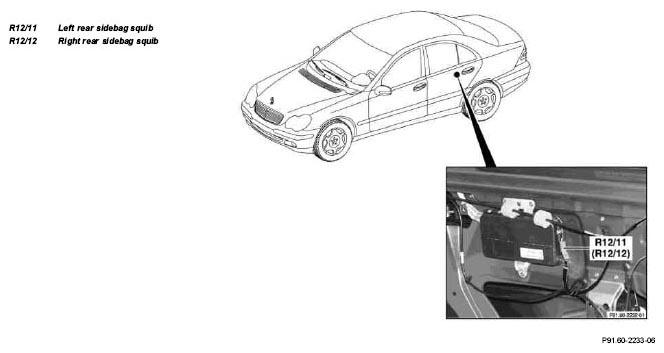

Illustrated on Model 203.0
| Rear sidebag, location | The left rear sidebag with the left rear sidebag squib (R12/11) and the right rear sidebag with the right rear sidebag squib (R12/12) are located in the respective rear doors. | ||
| Rear sidebag - task | The right and left rear sidebags reduce the risk of injury for the upper body and head of the rear passengers in question in the event of a side impact. | ||
| Rear sidebag - Design | The right rear sidebag consists of an inflator with right rear sidebag squib (R12/12) and an airbag. The airbag is made of an uncoated and recyclable polyamide fabric. The same applies to the left-hand side. | ||
| Rear Sidebag - Function | GF91.60-P-4015-02S |
