Side airbag sensor, location/task - GF91.60-P-4016R
MODEL 230

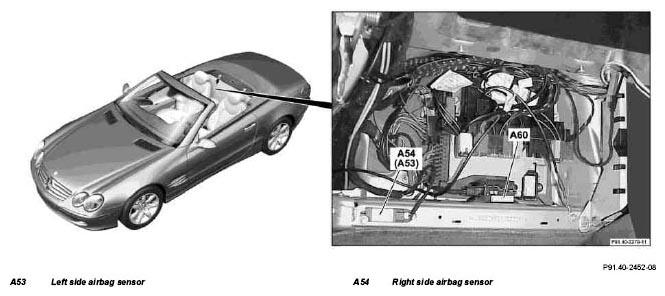

| Side airbag sensor, location | The right side airbag sensor (A54) and left side airbag sensor (A53) are located on the outside of the crossmember under the rear box. | ||
| Side airbag sensor, task | In a side impact the left side airbag sensor (A53) and the right side airbag sensor (A54) measure the acceleration or deceleration acting on the vehicle in the transverse direction. The restraint systems control module (N2/7) delivers a triggering signal to the side airbag. |
