Side impact protection system function - GF91.60-P-2005PMA
MODELS 203.0 /2 as of 1.6.04, 203.7 as of 24.4.04 with CODE (494a) USA version

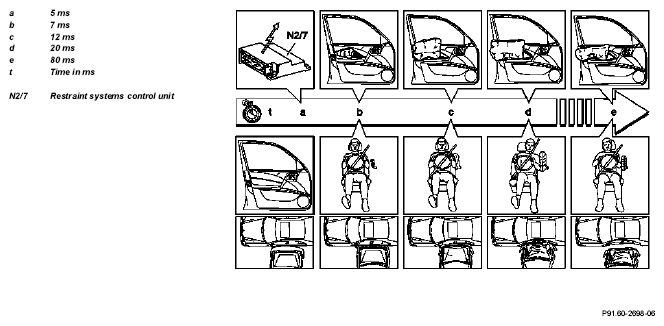

Sidebag triggering procedure, shown on model 210.0
The specified times are merely intended to illustrate the short duration of the sidebag inflation and deflation procedure.
Side impact collision
If a side-on collision is detected by the left sidebag and windowbag sensor (A53/1) or the right sidebag and windowbag sensor (A54/1), the body lateral acceleration data are transmitted to the restraint systems control unit (N2/7). The restraint systems control unit (N2/7) checks the plausibility of the data. If the data is plausible the following squibs are ignited if a side-on impact occurs at the left-hand side of the vehicle:
- Left front sidebag squib (R12/20)
- Left rear sidebag squib (R12/11)
- Left rear windowbag squib (R12/22)
If a side-on impact occurs at the right-hand side of the vehicle:
- Right front sidebag squib (R12/21)
- Right rear sidebag squib (R12/12)
- Right rear windowbag squib (R12/23)
The WSS control unit (Weight Sensing System) (N2/13) senses the occupancy status of the front passenger seat with the aid of the pressure sensor (B48/4). In order to detect a child seat the seat belt tension sensor (B48/3) is read in by the WSS (Weight Sensing System) control unit (N2/13) and the relevant message is transmitted to the restraint systems control unit (N2/7) via the Controller Area Network Bus Class B (interior) (CAN-B). If the front passenger seat is unoccupied or a child seat has been fitted, the right front sidebag squib (R12/21) is not triggered.
If the seat occupied recognition is malfunctioning, the right front sidebag squib (R12/21) is triggered for safety reasons.
| Windowbag, location/task/design/function | GF91.60-P-4014PP | ||
| Driver/front passenger sidebag, location/task/ design/function | GF91.60-P-4004PP | ||
| Rear sidebags, location/task/design/function | GF91.60-P-4015PP | ||
| Sidebag sensor, location/task | GF91.60-P-4016PP | ||
| SRS airbag malfunction indicator lamp, location/task | GF91.60-P-4011PM | ||
| Airbag OFF indicator lamp, location/task | GF91.60-P-4012PMA | ||
| Supplemental restraint systems control unit, location/task/design | GF91.60-P-4018PM | ||
| WSS control unit, location/task | GF91.60-P-4105PM | ||
| Pressure sensor, location/task | GF91.60-P-4106PM | ||
| Seat belt tension sensor, location/task | GF91.60-P-4107PM |
