Side impact protection system function - GF91.60-P-2005PP

MODELS 203.0 /2 /7 up to 23.4.04

Vehicle with triggered windowbag and triggered sidebags

Fig 1: Identifying Side Impact Protection System Function - Models 203.0

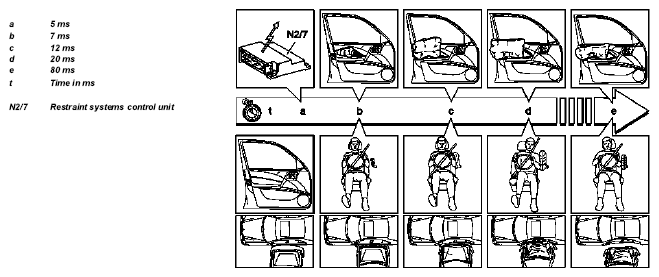

Illustrated on model 210.0 Chronological procedure of sidebag triggering

Fig 2: Identifying Chronological Procedure Of Sidebag Triggering - Models 210.0

The specified times are merely intended to illustrate the short duration of the sidebag inflation and deflation procedure.

Side impact collision

If the left sidebag and windowbag sensor (A53/1) or the right sidebag and windowbag sensor (A54/1) detects a side-impact collision, the relevant crash data are transmitted to the restraint systems control unit (N2/7).

The restraint systems control unit (N2/7) checks the plausibility of the signal and if appropriate actuates the sidebags and the window bags at the affected side of the vehicle.

If a side-impact collision occurs at the left side, the following components are actuated:

Left front sidebag squib (R12/20)
Left rear sidebag squib (R12/11) (except model 203.7)
Left rear windowbag squib (R12/22)

If a side-impact collision occurs at the right side, the following components are actuated:

Right front sidebag squib (R12/21)
Right rear sidebag squib (R12/12) (except model 203.7)
Right rear windowbag squib (R12/23)

The sidebag for the front passenger seat is only triggered if:

The seat belt buckle has been fastened
The front passenger seat occupied and child seat recognition sensor (B48) has detected that the front passenger seat is occupied
