Sidebag sensor, location/task - GF91.60-P-4016PP
MODELS 203.0/ 2/ 7

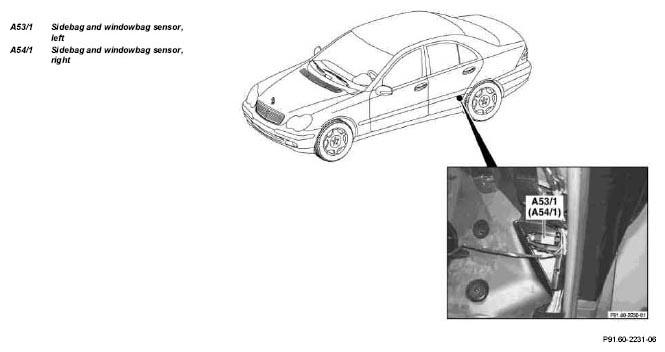

Illustrated on Model 203.0
| Sidebag sensor, location | The sidebag and windowbag sensor left (A53/1) and sidebag and windowbag sensor right (A54/1) are located on the outer sides of the floor panel below the rear seat cushions. | ||
| Sidebag sensor, task | The task of the sidebag and windowbag sensor left (A53/1) and sidebag and windowbag sensor right (A54/1) is to detect the lateral acceleration at an early stage, which is caused by a side impact. |
