Steering column adjustment, function - GF46.15-P-2000PA

MODELS 203.0 /2 /7 up to 30.6.02 with CODE (275c) Electrically adjustable driver seat, steering column and exterior mirrors with memory with CODE (242b) Electrically adjustable front passenger seat with memory

Function requirements

• Voltage not too high or too low
• Circuit 15R or circuit 15 On,
• Driver's door open.

Manual adjustment function

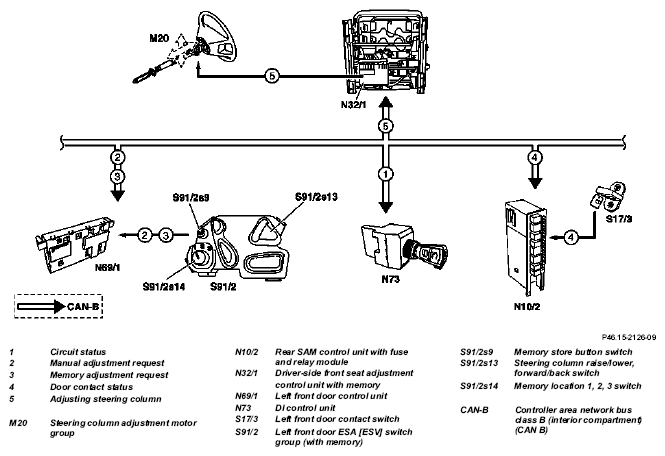

The steering column can be adjusted manually by means of the steering column up/down and forward/back switch (S91/2s13).

The adjustment requests are transmitted from the left front door control unit (N69/1) via CAN-B (CAN-B).

The driver-side front seat adjustment control unit with memory (N32/1) actuates the steering column adjustment motor group (M20) accordingly.

Memory adjustment function

Via the memory switches 1, 2, 3 (S91/2s14) the steering column can be adjusted into a position previously stored in the driver-side front seat adjustment control unit with memory (N32/1).

The left front door control unit (N69/1) reads in the left front door seat adjustment switch group (memory) (S91/2) and places the signals for the adjustment request on the CAN-B (CAN-B).

The driver-side front seat adjustment control unit with memory (N32/1) actuates the steering column adjustment motor group (M20) accordingly.

In parallel with this the driver seat and outside mirrors are adjusted corresponding to their stored position.

	Steering column adjustment lock-up protection function		GF46.15-P-3003PP
	Function of steering column adjustment motor position measurement		GF46.15-P-3000PP
	Steering column adjustment motor group, location/task		GF46.15-P-4103PP
	Steering column adjustment switch, location/ task		GF46.15-P-5001PA
	Left front seat adjustment control unit with memory location/task		GF91.29-P-2106PP
	Front driver-side door control unit, location/task/design/function		GF72.29-P-4105PP
	Electronic ignition switch control unit, location/ task/design/function		GF80.57-P-4102PP
