ETC control module, task - GF27.19-P-4012-02X

Transmission 722.6 in model 240

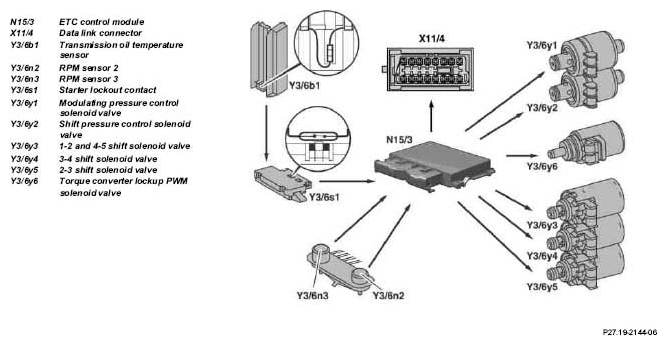

Input and output signals

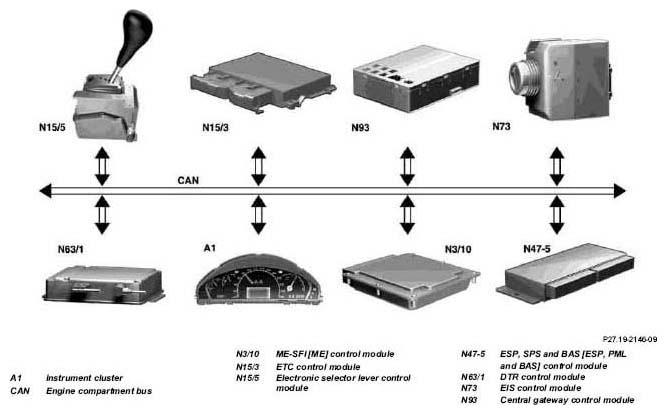

CAN databus

Task

The ETC control module (N15/3) determines the instantaneous operating condition of the vehicle and controls all gearshift sequences taking into account the ease of shifting and the driving situation.

It receives operating data in the form of input signals from:

• Starter lock-out contact (Y3/6s1)
• Transmission oil temperature sensor (Y3/6b1)
• Rpm sensor 2 (Y3/6n2)
• Rpm sensor 3 (Y3/6n3)

In addition there is a connection via the engine compartment bus to the:

• Instrument cluster (A1)
• ME-SFI [ME] control module (N3/10)
• Electronic selector lever module control module (N15/5)
• ESP, SPS [PML] and BAS control module (N47-5)
• DTR control module (N63/1)
• for EIS control module (N73)
• Central gateway control module (N93)

The solenoid valves for the modulating and shift pressure and for the gear changes are actuated by the ETC control module (N15/3). The pressure required is calculated from all input signals, adjusted to the torque to be transferred.

The following information from other systems is then processed:

ME-SFI [ME] control module (N3/10)

• Request: Move off in 1st gear
• Request: Active downshift
• Request: Status of torque converter lockup clutch
• Emergency running mode
• Cruise control operating
• Engine speed limiter active
• Engine status
• Engine oil status
• Specified torque
• Starter running
• Idle speed
• Shift curve offset
• Pedal value
• Inertia fuel shutoff
• Specified gear
• Kickdown

Electronic selector lever module control module (N15/5)

• Selector lever position
• Transmission mode switch (S16/5)
• Locking magnet energized

ESP, SPS [PML] and BAS control module (N47-5)

• Request: Shift to "N" (Neutral)
• Request: Specified gear
• Request: Active downshift
• Wheel speeds, direction
• Brake torque
• Lateral acceleration
• Shift curve offset
• Tempomat OFF
• Parking brake operated
• ESP indicator lamp
• ESP brake intervention active
• System status

EIS [EZS] control module (N73)

• Air conditioner compressor ON
• Circuit 50

Central gateway control module (N93)

• Request: connector

The following information is output to other systems:

Instrument cluster (A1)

• Mode selected on transmission mode switch (S16/5)
• Selector lever position
• Transmission variant

ME-SFI [ME] control module

• Request: Engine torque
• Drive torque control
• Emergency running
• Start enable
• Engine emergency stop
• Transmission variant
• Actual/target gear
• Mode selected on transmission mode switch (S16/5)
• Status of torque converter lockup clutch
• Selector lever position

ESP, SPS [PML] and BAS control module (N47-5)

• Transmission variant
• Actual/target gear

DTR control module (N63/1)

• Actual/target gear

EIS [EZS] control module (N73)

• Selector lever position

Central gateway control module (N93)

• ATF temperature
• Selector lever position
• connector
