Position display, task - GF27.19-P-5129-02P
Transmission 722.6 in models 203, 209.3 (except 209.376) up to 31.05.03, 211 (except 211.076) up to 31.08.03, 215, 220 up to 31.08.02, 230 (except 230.474) up to 31.08.03

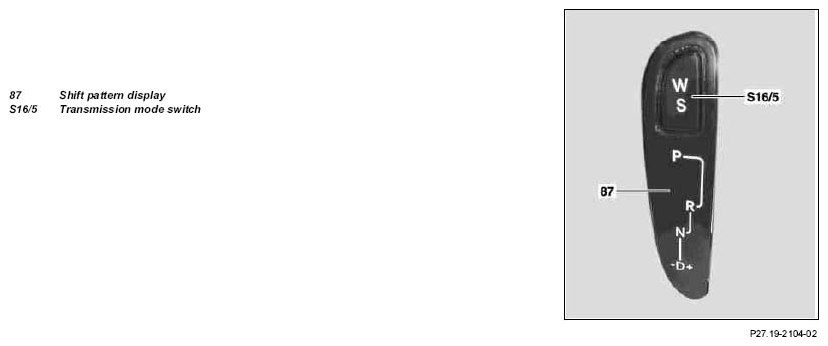

To display visually the position of the selector lever or selected gear range and the program selection performed at the transmission mode switch (S16/5) (no display of the gear currently shifted). The optional selector lever positions and their sequence are shown symbolically via the position indicator.
Shown on Model 203
