Power window automatic lowering, function - GF72.29-P-3009Q

MODEL 209.3 /4

Function prerequisites:

• No overvoltage or undervoltage
• Circuit 15 ON or circuit 15R ON

The automatic lowering function is only possible for the windows in the doors

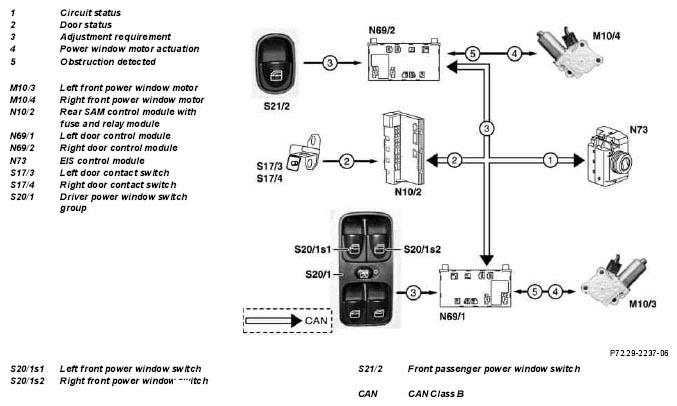

Driver-side control point

The window in the driver and passenger door can be opened automatically via the left front power window switch (S20/1s1) and right front power window switch (S20/1s2).

For this purpose, momentarily actuate left front power window switch (S20/1s1) and right front power window switch (S20/1s2) beyond the catch point. The corresponding signal is read in by the left door control module (N69/1).

The left front power window motor (M10/3) is directly actuated by the left door control module (N69/1).

The requests for the right front power window motor (M10/4) are transmitted to the right door control module (N69/2) via CAN class B bus, which then actuates the right front power window motor (M10/4).

Passenger control point

The window in the passenger door can be opened via the front passenger power window switch (S21/2).

For this purpose momentarily actuate front passenger power window switch (S21/2) beyond catch point. The opening request is read in by the right door control module (N69/2).

The right front power window motor (M10/4) is actuated directly by the right door control module (N69/2).

The window can be stopped by re-actuating (momentarily pressing) the corresponding power window switch (S20/1s1, S20/1s2 or S21/2).

The windows can still be opened or closed for 5 min. after switching off circuit 15R as long as the doors are not opened. The valid door status (door open or closed) is transmitted to the rear SAM control module with fuse and relay module (N10/2) by the left door contact switch (S17/3) and right door contact switch (S17/4), which then relays the information to the CAN class B bus. When a door is opened or the vehicle is locked all active power window functions are terminated

	Front power window motor, location/function		GF72.29-P-4108Q
	Power window switch group, location/task/function		GF72.29-P-4125Q
	Front passenger power window switch, location/task		GF72.29-P-4119Q
	Left door control module, location/task		GF72.29-P-4122Q
	Right door control module, location/task		GF72.29-P-4123Q
	Rear SAM control module with fuse and relay module, location/task	Model 209.3	GF54.21-P-4130Q
		Model 209.4	GF54.21-P-4130QA
	Electronic ignition switch control module, location/task		GF80.57-P-4120Q
