Driver-side/front passenger-side frontal acceleration sensor, location/task - GF91.60-P-4020QM: Notes

MODEL 209.3 /4 as of 1.6.04 with CODE (494a) USA version

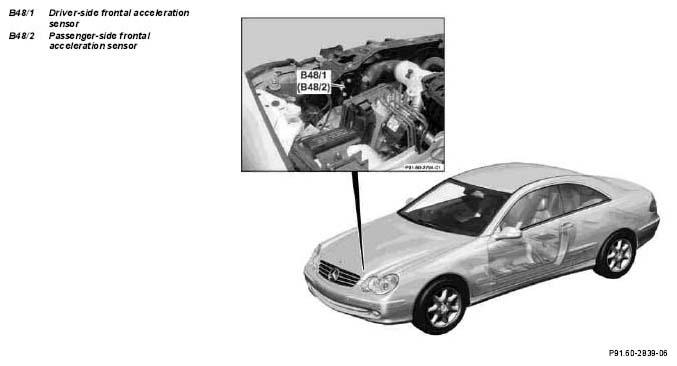

Fig 1: Identifying Driver-Side/Front Passenger-Side Frontal Acceleration Sensor Location

	Driver-side/front passenger-side frontal acceleration sensor, location	The driver-side frontal acceleration sensor (B48/1) is installed on the left interior side of the front module. The passenger-side frontal acceleration sensor (B48/2) is installed on the right interior side of the front module.
	Driver-side/passenger-side frontal acceleration sensor, task		GF91.60-P-4020-02QM
