COMAND Operating, Display And Control Module Connector End View (A40/3)

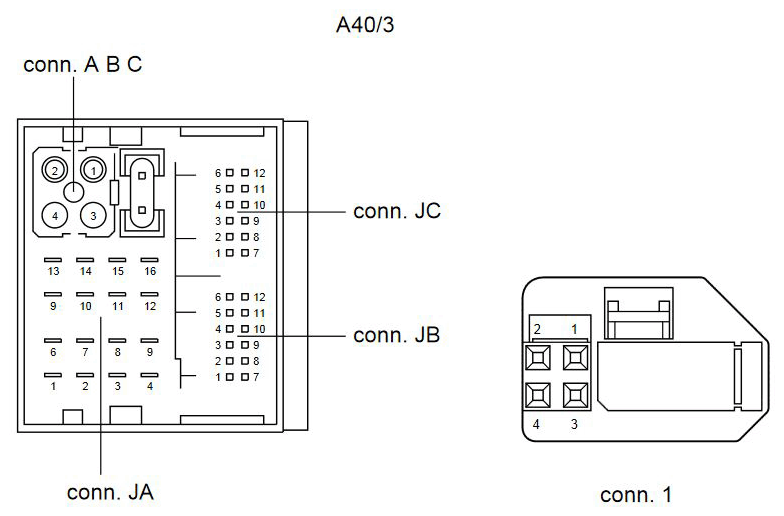

Fig 1: Comand Operating, Display And Control Module Connector End View (A40/3)
G11072768Courtesy of MERCEDES-BENZ USA
