Overhead Control Panel Control Module Connector End View (N70)

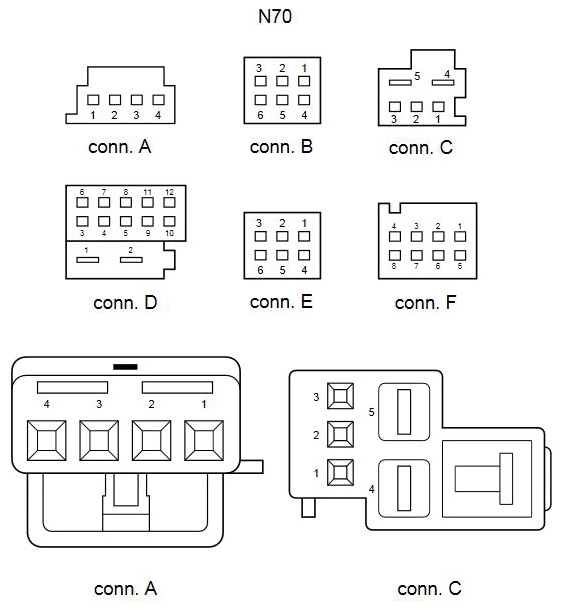

Fig 1: Overhead Control Panel Control Module Connector End View (N70)
G11072822Courtesy of MERCEDES-BENZ USA
