Rear door control module, location/task/function - GF72.29-P-4117T
MODEL 211.0 /2 /6

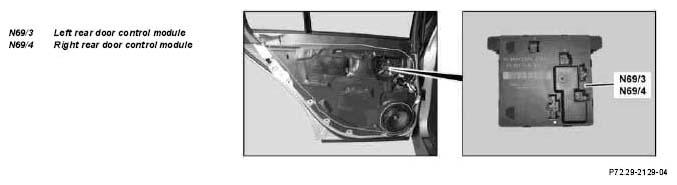

Illustrated on left rear door
On model 211.6, the number of the power window motors and door control modules in the rear can vary depending on the equipment and special body
| Rear door control module, position | The left rear door control module (N69/3) and right rear door control module (N69/4) are located at the corresponding upper door panel | ||
| Rear door control module, task | GF72.29-P-4102-03T | ||
| Rear door control module, function | The door control modules receive and transmit CAN messages, read switching statuses in, compare these data with stored values, and actuate connected consumers. |
