Heated seats/seat ventilation switch location/task - GF91.30-P-3004T: Notes
MODELS 211.0 /2 /6 with CODE (873) Electrically heated left and right front seats with CODE (401a) Front luxury seat, incl. heated seat and seat ventilation

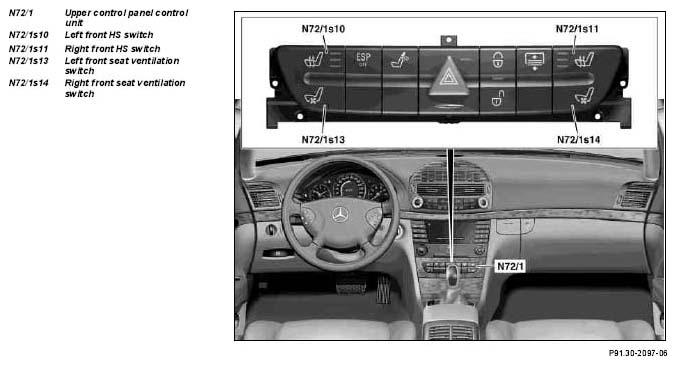

Fig 1: Identifying Upper Control Panel Control Unit, Front HS Switch And Front Seat Ventilation Switch
| Seat heating/seat ventilation switches, location | The left front heated seats switch (N72/1s10), right front heated seats switch (N72/1s11), left front seat ventilation switch (N72/1s13) and right front seat ventilation switch (N72/1s14) are located on the upper control panel control unit (N72/1) in the center console. | ||
| Seat heating/seat ventilation switches, task | GF91.30-P-3004-02T |
