Navigation processor, component description - GF82.85-P-3132TM

MODEL 211.0/2 as of 1.6.06 with CODE (527) COMAND APS with single DVD drive (with navigation)

MODEL 211.0/2 as of 1.7.06 with CODE (530) COMAND APS USA (with navigation system)

Shown on model 211.0

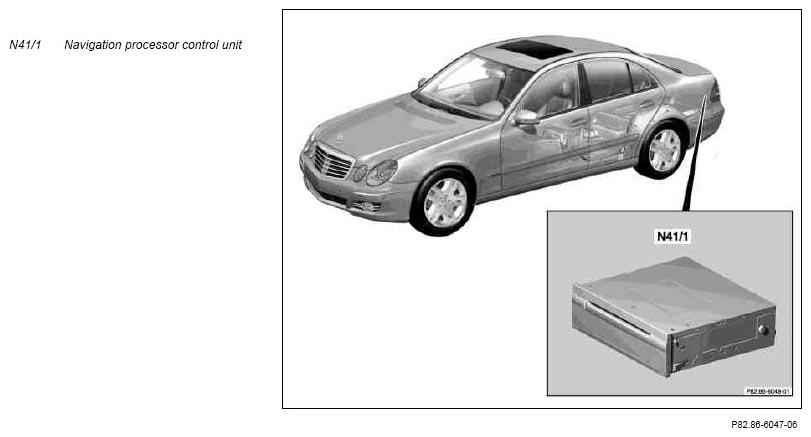

Fig 1: Locating Navigation Processor Control Unit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The navigation processor is installed in the luggage compartment on the left behind the side paneling.

Task

The navigation processor is responsible for the provision of navigation information in the vehicle.
